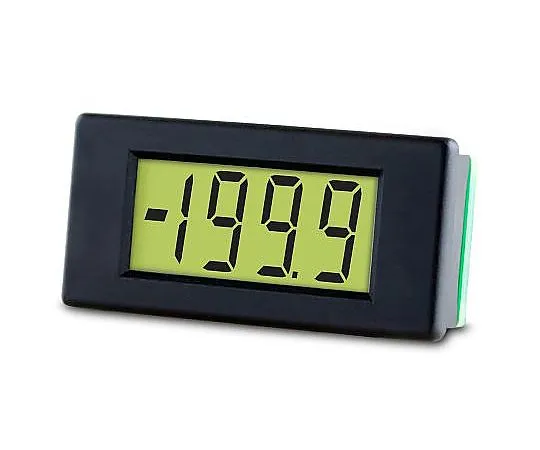

63-4790-12 Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, 33 x 15 mm DPM 2AS-BL
Product Description
Product Model: 63-4790-12Product Brand: Lascar Features […]
Contact Us
Product Details
Product Model: 63-4790-12
Product Brand: Lascar
Features
- 8.25mm, 3.5 Digit, Sub-miniature. One piece snap-in design Low power consumption Auto-zero, auto-polarity Programmable decimal points LED backlight Functions as ammeter when ***d with a 200mV digital current shunt 3 to 7.5Vdc power supply to measure an input voltage referenced to meter supply ground or 6 to 15Vdc to measure an input voltage which is floating with respect to meter supply Single-in-line connection Temperature stability zero drift 250 ppm/°C. Backlighting:. DPM 2AS-BL 15mA @ 5Vdc (typ.)
Spec
- Quantity：1piece
- Current Type : DC
- Number of Digits : 3.5
- Display Type : LCD
- Cutout Height : 15mm
- Cutout Width : 33mm
- Depth : 13.6mm
- Meter Accuracy : ±1 %
- Analogue Effect : Digits Only
- Minimum Temperature : 0°C
- Maximum Temperature : +50°C
- CODE No.:419-9334
