Electronic/Electrical Parts and Controll Equipments

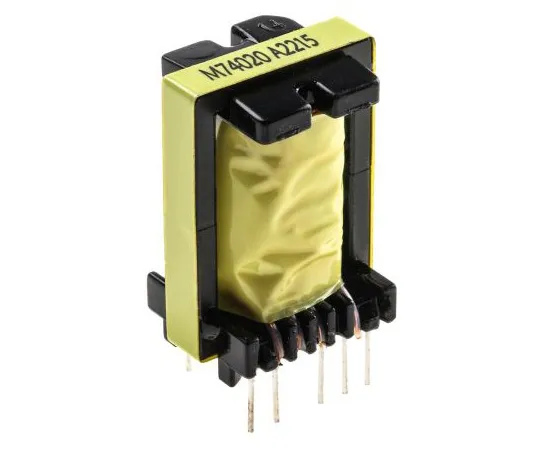

63-4789-96 2 Output 10 → 16W Flyback SMPS Transformer, 85 → 265V ac, 10 → 17 V ac, 4 → 7 V ac 74020
Product Description
Product Model: 63-4789-96Product Brand: Myrra Features […]
Contact Us
Product Details
Product Model: 63-4789-96
Product Brand: Myrra
Features
- IEC 950, IEC 61558 for reinforced insulation. Switch mode power transformers format E16 ; EL19, 1 W → 16 W. Transformers forming the core of a switch mode power supply, in association with a specialist circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet). The secondaries can be connected in series. Materials comply with UL94-V0.
Spec
- Quantity：1piece
- Secondary Voltage Rating : 10 → 17 V ac, 4 → 7 V ac
- Primary Voltage Rating : 85 → 265V ac
- Power Rating : 10 → 16W
- Number of Outputs : 2
- Mounting Type : Through Hole
- Application : Flyback
- Secondary Current : 1.4 A, 3 A
- Termination Type : Pin
- Length : 21mm
- Width : 31mm
- Depth : 17mm
- Dimensions : 21 x 31 x 17mm
- Number of Phases : 1
- CODE No.:418-5537
