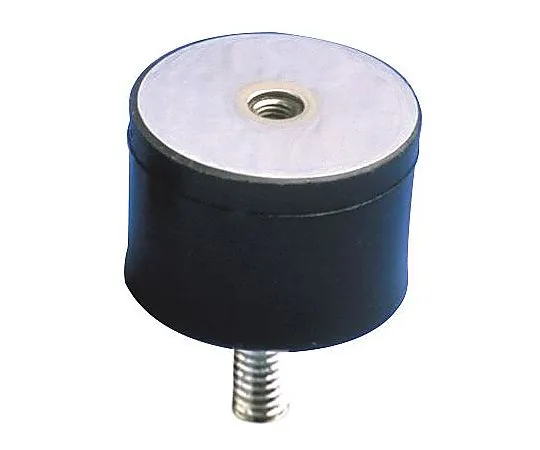

63-4788-26 Paulstra 520053 10mm Shock Mount M4 16mm Diameter 20daN Compression Load 1.5mm, Male to Female Natural Rubber 520053
Product Description
Product Model: 63-4788-26Product Brand: Paulstra Featur […]
Contact Us
Product Details
Product Model: 63-4788-26
Product Brand: Paulstra
Features
- Male-Female Mount. Made from a natural rubber these mounts are simple and economical to fix and would be very ***ful if ***d for vibration isolation dep***ing on the radial forces. Suitable for compression (axial) and shear (radial).
Spec
- Quantity：1piece
- Type : Male to Female
- Compression Load : 20daN
- Compression Deflection : 1.5mm
- Shearing Load : 2.5daN
- Shearing Deflection : 1.5mm
- Thread Size : M4
- Material : Natural Rubber
- Metalwork : Steel
- Diameter : 16mm
- Overall Height : 10mm
- Maximum Operating Temperature : +70°C
- CODE No.:415-0755
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7599-85 TRACOPOWER TEL 2 2W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±12V dc TEL 2-2422
model: 63-7599-85
brand: TRACOPOWER
Electronic/Electrical Parts and Controll Equipments

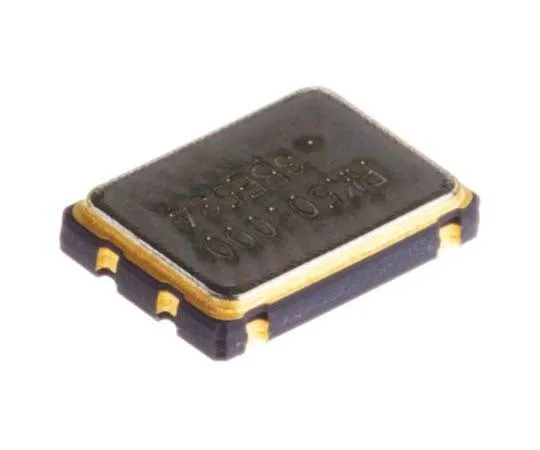

63-7729-15 RALTRON, 50 MHz Clock Oscillator, ±50ppm CMOS, TTL, 4-Pin SMD CO4305-50.000-EXT CO4305-50.000-EXT
