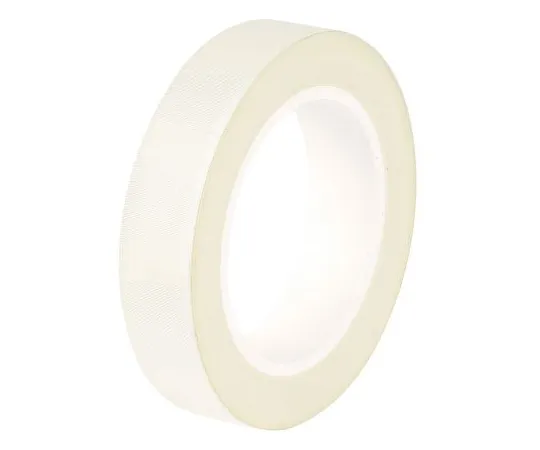

63-4786-67 Advance Tapes White Electrical Tape, 12mm x 55m 169719
model:
63-4786-67
brand:
Advance Tapes
Product Description
Product Model: 63-4786-67Product Brand: Advance Tapes F […]
Contact Us
Product Details
Product Model: 63-4786-67
Product Brand: Advance Tapes
Features
- Class F 155°C Glass Cloth Tape. A non-woven glass cloth with an acrylic adhesive ***d in electrical insulation of coils, insulation of square conductors in traction motors and generators and tensional strapping of coils and armature windings. Acrylic adhesive Recognised by UL Conforms to BS EN 60454-3-8 Type 2 Very high temperature resistance High mechanical strength Available in 50m length rolls
Spec
- Quantity：1piece
- Colour : White
- Backing Material : Glass Cloth
- Width : 12mm
- Length : 55m
- Thickness : 0.18mm
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +155°C
- Adhesive Material : Acrylic
- Trade Name : AT4002
- Adhesion Strength : 3.5 N/cm
- Complies with EN Legislation : EN 60454-3-8 Type 2
- Tensile Strength : 280N/cm
- Breakdown Voltage : 2500V
- CODE No.:408-9417
