Electronic/Electrical Parts and Controll Equipments

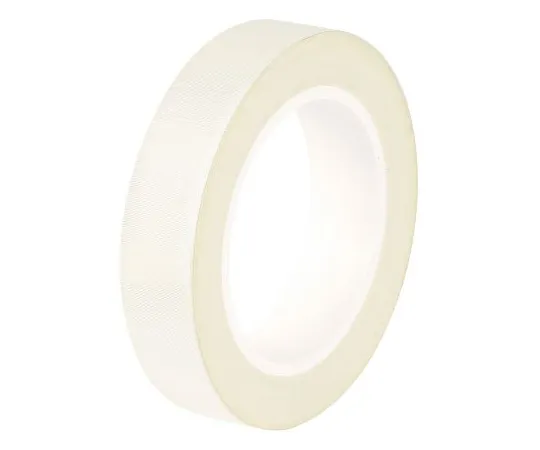

63-4786-66 Advance Tapes White Electrical Tape, 25mm x 55m 169337
model:
63-4786-66
brand:
Advance Tapes
Product Description
Product Model: 63-4786-66Product Brand: Advance Tapes F […]
Contact Us
Product Details
Product Model: 63-4786-66
Product Brand: Advance Tapes
Features
- Class B 130°C Glass Cloth Tape. A non-woven glass cloth with a rubber thermosetting adhesive ***d in electrical insulation of coils, insulation of square conductors in traction motors and generators and tensional strapping of coils and armature windings. Rubber thermosetting adhesive Recognised by UL Conforms to BS EN 60454-3-8 Type 1 High temperature resistance (130°C) High mechanical strength 55m length rolls
Spec
- Quantity：1roll(55m)
- Colour : White
- Backing Material : Glass Cloth
- Width : 25mm
- Length : 55m
- Thickness : 0.18mm
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +130°C
- Adhesive Material : Thermosetable Rubber Resin
- Trade Name : AT4001
- Adhesion Strength : 4 N/cm
- Elongation at Break : 5%
- Tensile Strength : 280N/cm
- Model Number : AT4001
- CODE No.:408-9401
