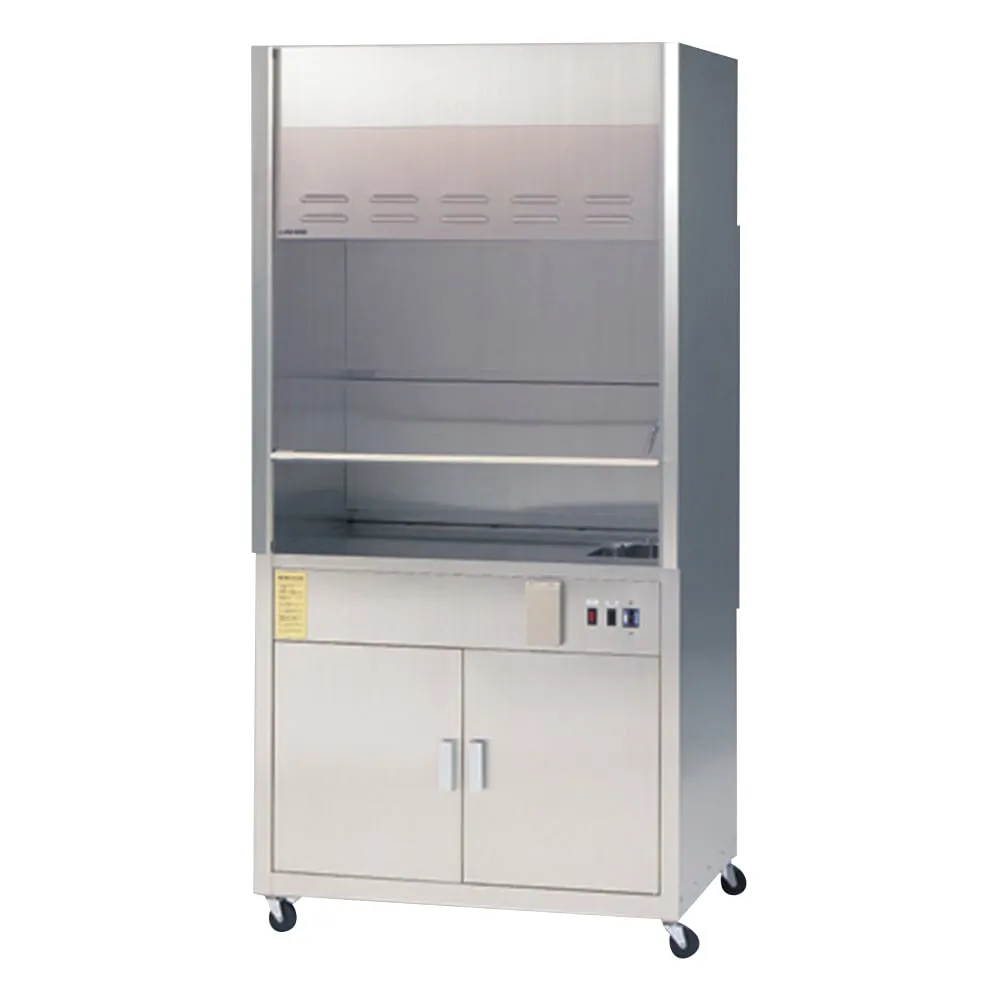

3-4048-31 Compact Draft 900 (Stainless Steel) with Plumbing and Draining, and Explosion-Proof Fan CD9S-BB-L
Product Description
Product Model: 3-4048-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-4048-31
Product Brand: AS ONE Corporation
Features
- The door is a balance weight system, so it can be stopped at any position.
- Wide 900 mm size, suitable for places where large drafts cannot be installed.
- LED lighting is ***d to save power.
Spec
- Fan Specification: Explosion-Proof Fan
- Plumbing: Yes
- Material: Body/Stand/SUS304, Door/Transparent PVC
- External Dimensions: 900 x 715 x 2039 mm
- Effective Inner Dimensions: 898 x 600 x 800 mm
- Sash Opening Surface: 820 x 625 mm
- Work Plane Height: 795 mm
- Equal Load Capacity: Work Surface/50 kg, Inside Stand/50 kg
- Weight: Body/91 kg, Fan/16 kg
- Power Supply: 3-Phase 200 V (Fan Circuit Only)/100 VAC 50/60Hz 15 A
- Interior Lighting: LED Lamp (7W) x 1
- Power cord length: 2.5 m
- Service Outlets: 2 x 100 VAC 3P, Up to 14 A Usable
- Operating volume: Approx. 80dB
- Air flow: Approx. 6m3/min(Door 1/3 Open, Surface Speed 0.5 m/s, No Load) * May vary dep***ing on the work environment
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Not suitable for *** when application for local exhaust ventilation is required.
