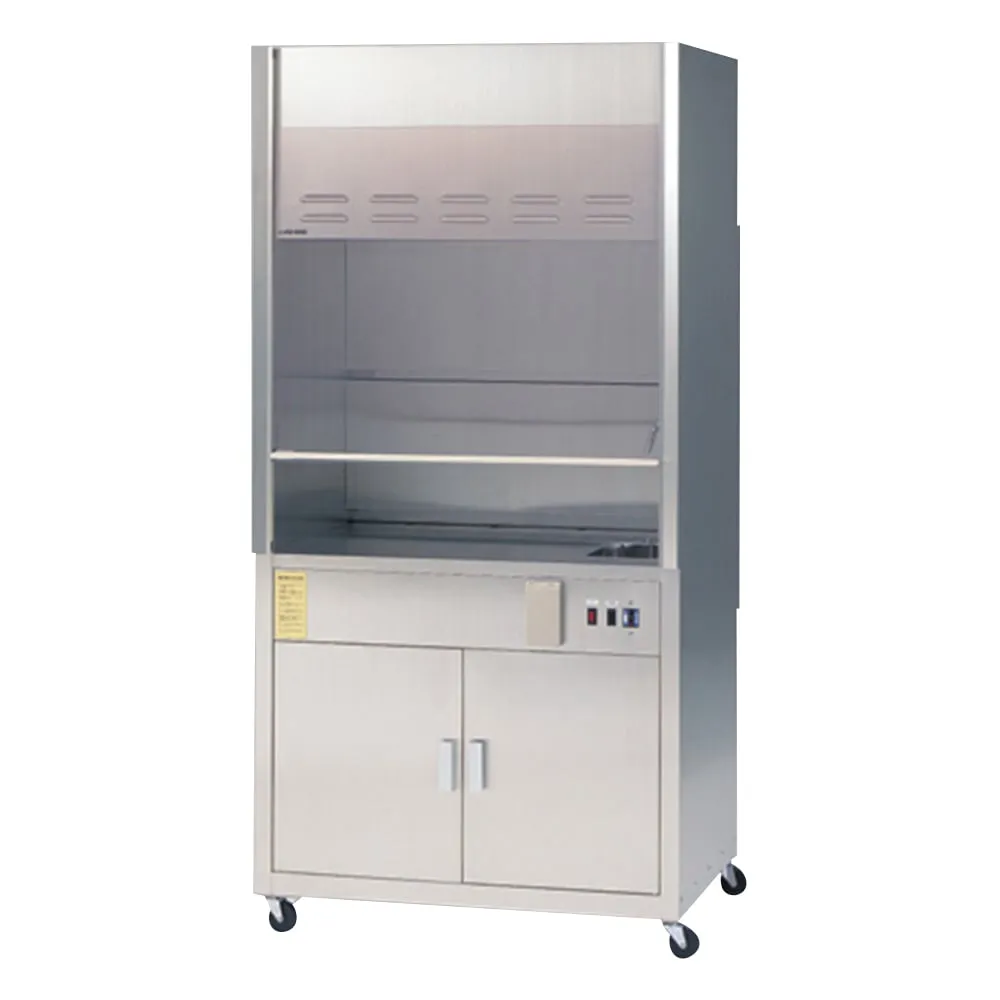

Spec

• Material: Main, Mounted / Stainless (SUS304), Door / Transparent PVC (vinyl chloride Plastic)
• external dimension: 900 x 715 x 2039 mm
• Available inner size: 898 x 600 x 800 mm
• Sash opening surface: 820 x 625 mm
• Work Plane Height: 795 mm
• Uniform Load tolerance: Work plane / 50 kg, inside / 50 kg
• Weight: Body / 75 kg, Fan / 14 kg
• power supply: 3 Phase 200 V (fan circuit chisel) AC100V 50 / 60Hz 15 A
• Interior Lighting: fluorescent lamps (15 W) 1 piece
• The length of power cord was 2.5 meters
• Service outlet: AC100V 3 P x 2 pieces up to 14 A
• Operating volume: about 80 dB
• air volume: approx. 6 m3/min (Door 1/3 open, 0.5 m/s face speed without load) * It may vary dep***ing on the working environment
• Accessories: Supply / Drainage hose 2 m x 1 piece exhaust duct (φ 100 mm x 2.5 m)
• Model number: CD9S-BB
• explosion-proof fan
• Plumbing: Yes
• stainless steel
• * Fan chisel Explosion (We need three phase 200 V power supply.)
• * Shipping, carrying, installation and assembly costs are required separately. Please contact us
• * Please contact your facility group for an application for local exhaust equipment
• <
