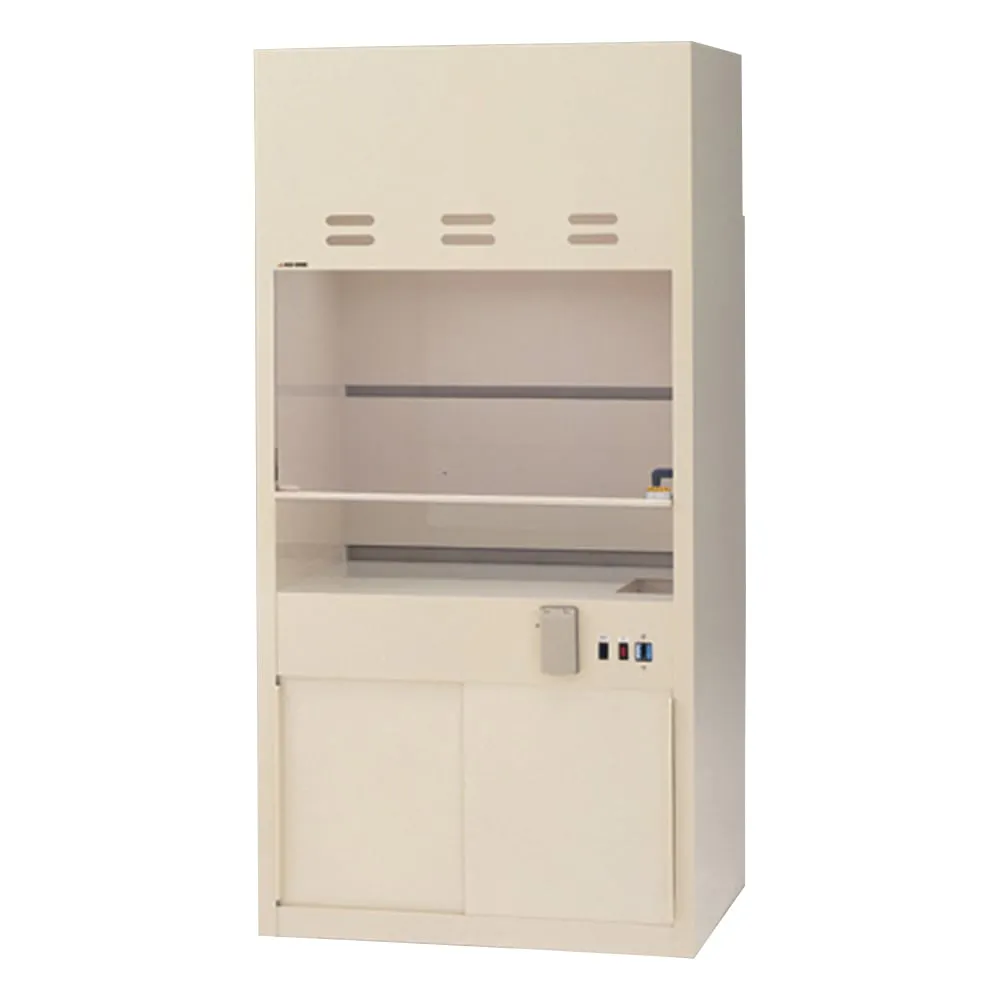

3-4047-31 Compact Draft 900 (Made of PVC) with Water Supply and Drainage, and Acid Resistant Fan CD9P-TS-L
Product Description
Product Model: 3-4047-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-4047-31
Product Brand: AS ONE Corporation
Features
- The door is a balance weight system and can be stopped at any position.
- Wide 900 mm size, suitable for cases where large drafts cannot be installed.
- LED lighting is ***d to save power.
Spec
- Fan Specification: Acid-Resistant Fan
- Plumbing: Yes
- Material: Body/Stand/PVC, Door/Transparent PVC
- External Dimensions: 900 x 685 x 1926 mm
- Effective Inner Dimensions: 894 x 600 x 850 mm
- Sash Opening Surface: 820 x 625 mm
- Weight: Main Unit/Approx. 57 kg, Acid Resistant Fan/20 kg
- Weight: Main Unit: Approx. 57 kg, Fan: Approx. 14 kg
- Interior Lighting: LED Lamp (7W) x 1
- Power cord length: 2.5 m
- Power: 100 VAC 50/60Hz
- Power consumption (50/60Hz): 590/510W
- Workplane Equal Load Capacity: Approx. 30 kg
- Service Outlets: 2 x 100 VAC 3P up to 9 A
- Operating volume: Acid-resistant fan/approx. 65dB
- Air Volume: Approx. 6m3/min(Door 1/3 Open, Surface Speed 0.5 m/s, No Load)
- Accessories
- Water Supply Hose: Φ16 mm Bamboo Shoot (2 m)
- Φ150 mm x 2.5 m Exhaust Duct
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Not suitable for *** when application for local exhaust ventilation is required.
