Electronic/Electrical Parts and Controll Equipments

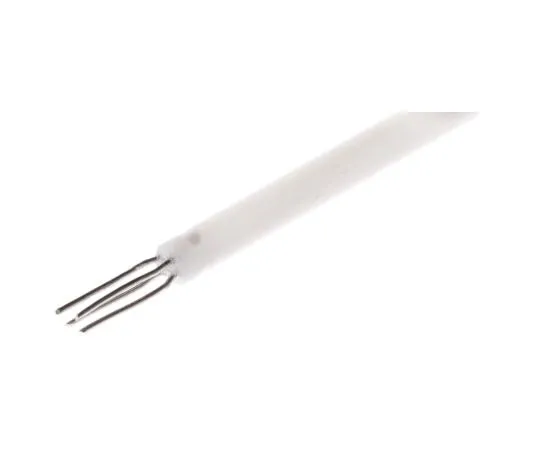

63-4783-97 RS PRO 2 wire PT100 Sensor, -200°C min +650°C max, 15mm Probe Length x 1.5mm Probe Diameter 397-1595
Product Description
Product Model: 63-4783-97Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4783-97
Product Brand: RS PRO
Features
- Duplex PT100 Wire Wound Detector. Twin-element Duplex detector utilising two pure platinum wires wound into a miniature spiral and located within axial holes in a high purity alumina rod. The high stability Duplex sensor can be connected to the measuring or control device with two wires for the source and two for measurement, reducing the effects of long leads on the accuracy of measurement. The detector should ideally be ho***d within a protective metal tube.
Spec
- Quantity：1piece
- Sensor Type : PT100
- Probe Length : 15mm
- Probe Diameter : 1.5mm
- Minimum Temperature Sensed : -200°C
- Maximum Temperature Sensed : +650°C
- Termination Type : Solder
- Probe Material : Ceramic
- Number Of Wires : 2
- Accuracy : Class A
- Response Time : 0.4 s
- CODE No.:397-1595
