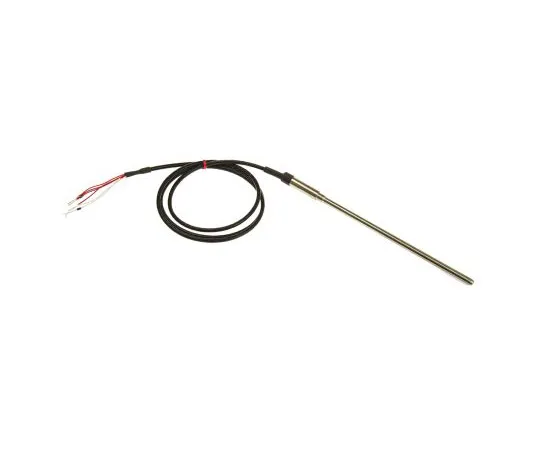

63-4783-86 RS PRO 2 x 3 wire PT100 Sensor, -50°C min +250°C max, 150mm Probe Length x 6mm Probe Diameter 397-1393
Product Description
Product Model: 63-4783-86Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4783-86
Product Brand: RS PRO
Features
- Industrial Style ; Mineral Insulated Duplex PT100 Sensors. Duplex PRT ‘s with two indep***ent PT100 detectors inside the tip of the probe. This allows one probe to be connected to two measurement or control devices; alternatively one sensor may be ***d as a primary and the other as a backup, eliminating the need to remove and replace the probe if one of the sensors should fail. Duplex PT100 class B, 3-wire 6-core screened cable Stainless steel (316) sheath Plain pot seal Mineral insulated types can be carefully bent into shape
Spec
- Quantity：1piece
- Sensor Type : PT100
- Probe Length : 150mm
- Probe Diameter : 6mm
- Minimum Temperature Sensed : -50°C
- Maximum Temperature Sensed : +250°C
- Termination Type : Cable
- Cable Length : 1m
- Probe Material : Stainless Steel
- Number Of Wires : 2 x 3
- Accuracy : Class B
- CODE No.:397-1393
