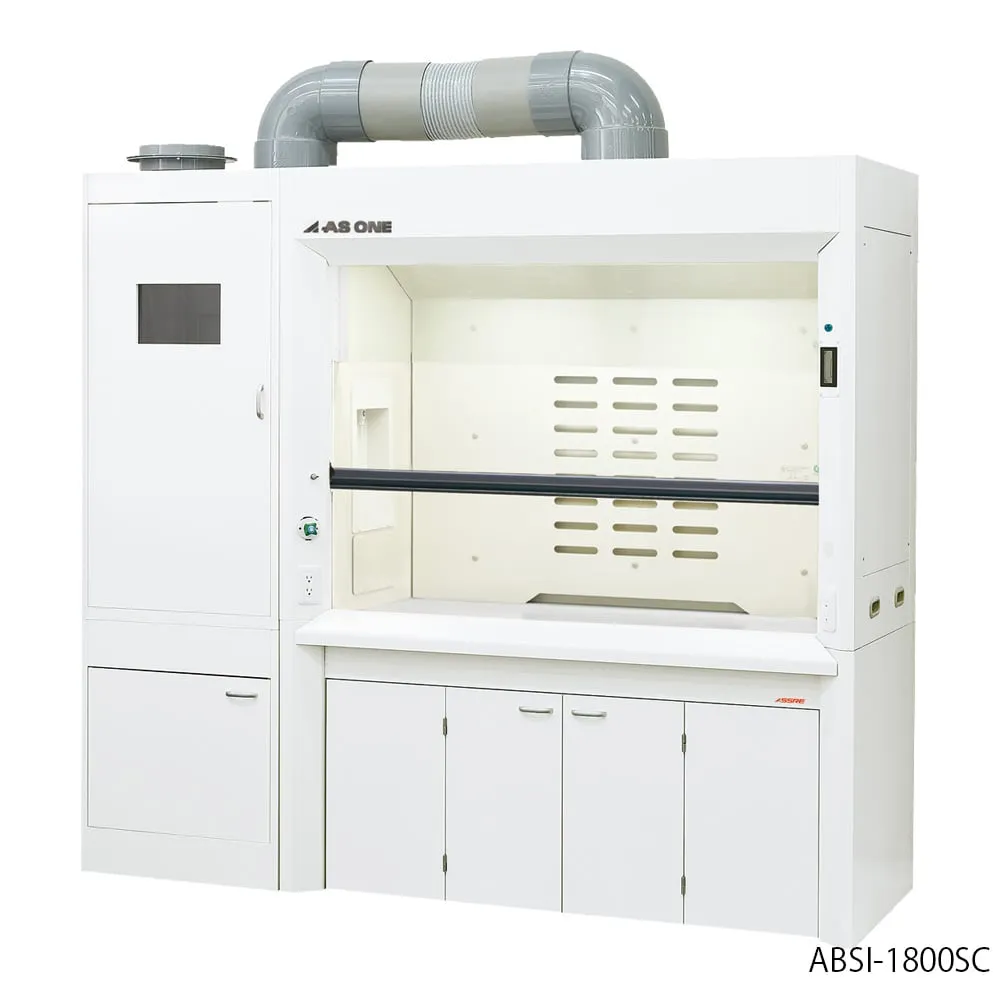

Spec

• specifications: deep
• External Dimensions (mm): 1900 x 980 x 2250
• Inner Dimensions (mm): 950 x 755 x 1200
• Weight (approx. kg): 485
• Control wind speed: 0.5 m/s (Opening height of sash at work: 400 mm)
• Material: Exterior/Steel (Painted Finish), Interior/Chemical-Resistant/Heat-Resistant Board (Flame Retardant/Phenolic Resin Laminated Board), Work Surface/Epoxy Resin Top Plate Integrally Molded Product (32 mm Thickness)
• Lifting Sash: Tempered Glass (5 mm Thickness), with Balance Weight Type Opening Restriction Key (Height 400 mm), Handle/ABS Resin
• Hydrant: Chemical-Resistant Coating Remote Control Type/1 Location Water Supply Connection Opening G1/2 (Female Screw Stopper)
• Drain Port: Drain Connection Port 25 A with Recessed Resin Sink and Drain Trap
• Static pressure (exhaust): 500 Pa
• Outlets: 2 (100 VAC 15 A with 2 connected grounding)
• lighting: LED fluorescent
• Operation Switch: Touch Panel Lighting/Fan
• safety features: exhaust airflow display
• Exhaust Connection: PVC (Vinyl Chloride Resin) Volume Damper Phase Flanged
• Power connection: Terminal block with electrical box
• Exhaust gas treatment equipment with a set of horizontal wet scrubber units
• [Exhaust]
• Air volume (m3/min): 13
• Duct Connection Port: 200 A
• Required Duct Diameter (φmm): 200
• [Ancillary Facilities]
• Scrubber pump power: 150/180W
• Tank Capacity (L): Approx. 70
• Scrubber Frontage (mm): 700
• Fluorescent Lamp (Pieces): 20 W x 2 Lamps Equivalent
• Operating weight (approx. kg): 585
• *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
• *Exhaust fan is not included. Please contact us.
