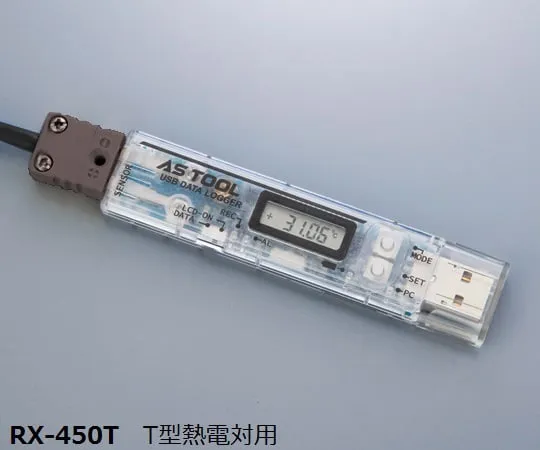

4-1721-01-20 Thermocouple Data Logger (stick type) with Calibration Certificate RX-450T
Product Description
Product Model: 4-1721-01-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-1721-01-20
Product Brand: AS ONE Corporation
Features
- A connector type thermocouple (sold separately) can be inserted to record 15000 data points.
- Captured data is saved in CSV format, making it easy to graph with commercially available spreadsheet software.
- When connecting to a computer, power is supplied from the USB cable, and data is loaded directly into the computer.
Spec
- Measuring range (deg. C): -200 to + 300.0
- Supported thermocouples: T
- Output Format: CSV
- Temperature Sensor: T-type thermocouple (mini-connector type)
- Accuracy of measurement (25 degrees C): +/- 0.8 degrees C (not including error of thermocouple)
- Measuring intervals: 5 to 59 seconds, 1 to 240 minutes
- Maximum recording capacity: 15000 points
- Operating System: Windows ® 7/8/8.1/10 (32/64 bit)
- Battery: CR 1220 button battery (included for testing)
- Battery life: Approximately 1 year (measured hourly)
- Size: 95.0 x 21.0 x 10.4 mm
- Weight: approximately 21 g (excluding batteries and thermocouples)
- *Control software (Japanese) can be downloaded free of charge from the Web.
- Operating System: Windows ® Vista/7/8/8.1/10 (32/64 bit)
- < a href="https://axel.as-1.co.jp/images/pdf/pb/2-7963/rx-controller_v1.20.zip" rel="noopener nofollow" target="_blank" > Download the dedicated application (v 1.20) here < /a >
- Operating System: Windows ® 7/8/8.1/10 (32/64 bit)
- Calibration points are 1 point at a temperature of 25 degrees Celsius. If you would like additional points, please contact us separately.
