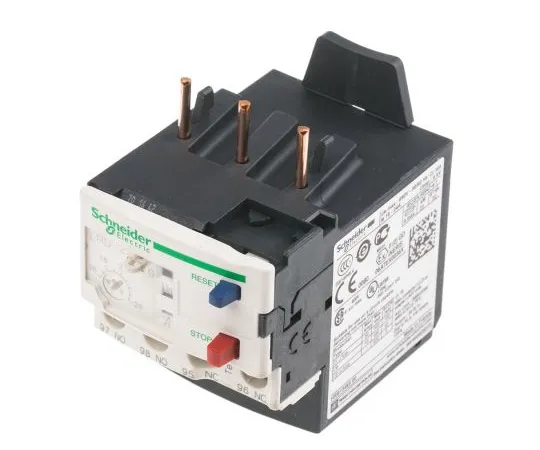

63-4782-77 Schneider Electric Thermal Overload Relay NO/NC, 16 → 24 A, 24 A LRD22
model:
63-4782-77
brand:
Schneider Electric
Product Description
Product Model: 63-4782-77Product Brand: Schneider Elect […]
Contact Us
Product Details
Product Model: 63-4782-77
Product Brand: Schneider Electric
Features
- UL and CSA. Three-pole Thermal Overload Relays. Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor. Adjustable relay setting dial Test button Stop button Manual/auto reset Trip indicator Sealable cover 1N/O ; 1N/C auxiliary contacts Direct mounting beneath three-pole contactors or indep***ent mounting on DIN rail Insulation voltage 600V, Withstand Voltage 6kV
Spec
- Quantity：1piece
- FLC Motor Rating : 16 → 24 A
- Contact Current Rating : 24 A
- Pole Configuration : 3P
- Range : TeSys
- Contact Voltage Rating : 690 V ac
- Mounting Style : Direct Contactor
- Series : LRD2
- Normal State Configuration : NO/NC
- Number Of Auxiliary Contacts : 2
- Reset Method : Automatic, Manual
- Width : 45mm
- Operating Temperature Range : -20 → +60 °C
- CODE No.:394-9324
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

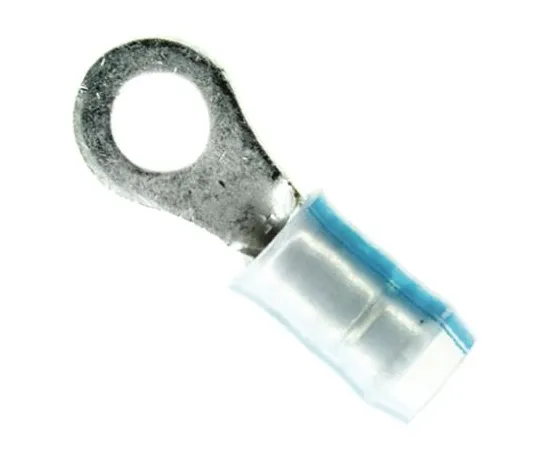

64-0436-51 TE Connectivity PIDG Series Insulated Crimp Ring Terminal, M4 (#8) Stud Size, 1mm² to 2.6mm² Wire Size, Natural 53417-1
model: 64-0436-51
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

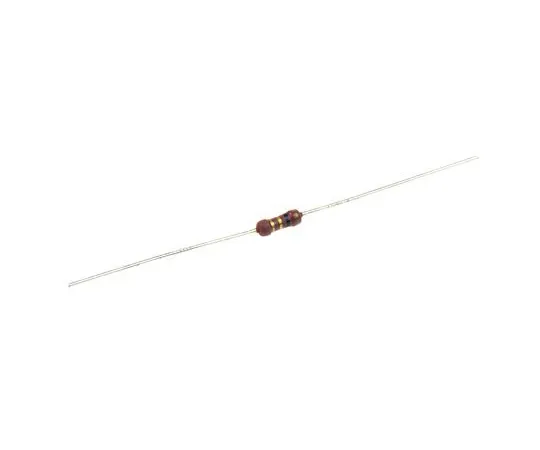

64-0228-77 Vishay 180Ω 1W Metal Film Fixed Resistor ±5% ±250ppm/°C PR01000101800JA100
