Electronic/Electrical Parts and Controll Equipments

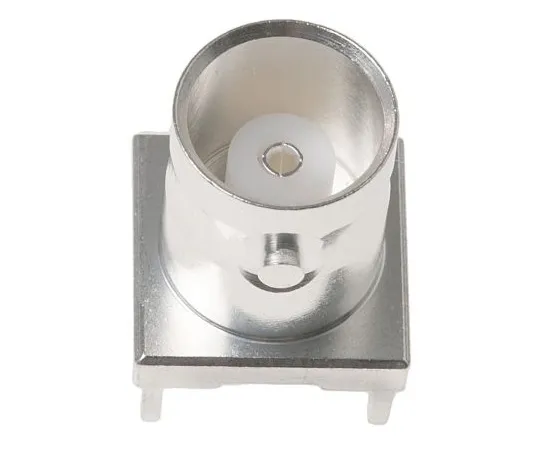

63-4782-54 TE Connectivity Straight 50Ω PCB Mount BNC Connector, jack, Silver, Through Hole Termination, RG140/U, RG210/U, RG59 1-1337445-0
model:
63-4782-54
brand:
TE Connectivity
Product Description
Product Model: 63-4782-54Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4782-54
Product Brand: TE Connectivity
Features
- TE Connectivity 50 Ohm BNC Connectors - Professional Grade Vertical PCB Mount Jacks. Vertical PCB mount 50 Ohm Professional Grade BNC jacks with a PTFE dielectric and solder terminals. Stock number ; 394-1049 394-1049 has a silver plated circular body and silver contact Stock number ; 394-1055 394-1055 has a silver plated square body and silver contact Stock number ; 680-7456 680-7456 has a nickel plated circular body and gold contact
Spec
- Quantity：1piece
- G***er : Female
- Mounting Type : PCB Mount
- Impedance : 50Ω
- Termination Method : Through Hole
- Body Orientation : Straight
- Cable Type : RG140/U, RG210/U, RG59 B/U, RG62 A/U
- Bulkhead : No
- Operating Frequency : 0 → 4GHz
- Body Plating : Silver
- Maximum Operating Temperature : +165°C
- Contact Material : Brass
- Contact Plating : Silver
- CODE No.:394-1055
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5136-79 Vishay 100μF Polypropylene Capacitor PP 500V dc ±5% Tolerance Through Hole MKP1848C DC-Link Series MKP1848C71050JY5
model: 63-5136-79
brand: Vishay
Electronic/Electrical Parts and Controll Equipments
63-6995-34 Festo Pneumatic Straight Threaded-to-Tube Adapter, Yes Push In 8 mm NPQH-D-G18-Q8-P10
model: 63-6995-34
brand: Festo
Electronic/Electrical Parts and Controll Equipments
64-0612-90 1mΩ 2512 Metal Strip Surface Mount Fixed Resistor ±1% 3W - TLR3A30DR001FTDG TLR3A30DR001FTDG
model: 64-0612-90
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

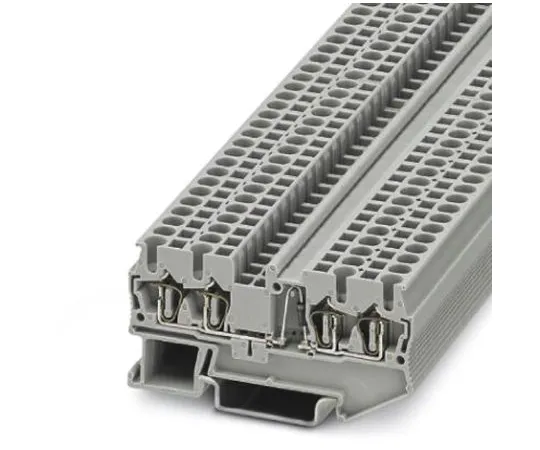

64-0637-45 Phoenix Contact, ST 2.5-QUATTRO-DIO/R-L Series , 800 V Spring Cage, Spring Cage Termination 3036534
