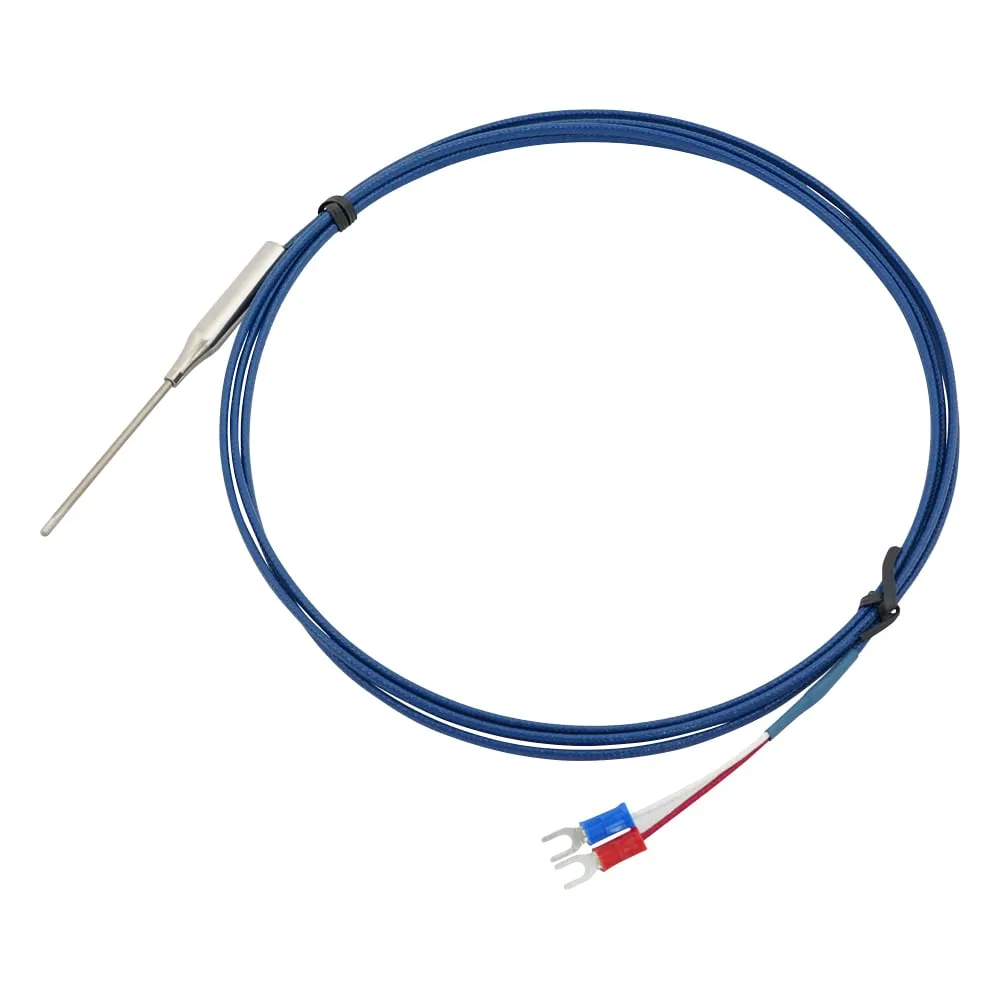

3-8927-01-56 K Thermocouple (M3Y terminal type) with English Calibration Certificate KTO-2350M3
Product Description
Product Model: 3-8927-01-56Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-8927-01-56
Product Brand: AS ONE Corporation
Spec
- Temperature range (deg. C): -50 to + 700 deg.
- Sheath diameter (mm): phi 2.3
- Sheath length (mm): 50
- Materials: sheath/stainless steel (SUS 316), sleeve/stainless steel (SUS 304), lead wire coating/glass wool
- Lead wire length: 2 m
- Lead wire terminal: M3Y terminal
- *Use in an environment where the temperature at the base of the sheath part is below 100 degrees Celsius.
- Calibration points are 2 points for temperatures of 25 degrees Celsius and 80 degrees Celsius. If you would like additional points, please contact us separately.
