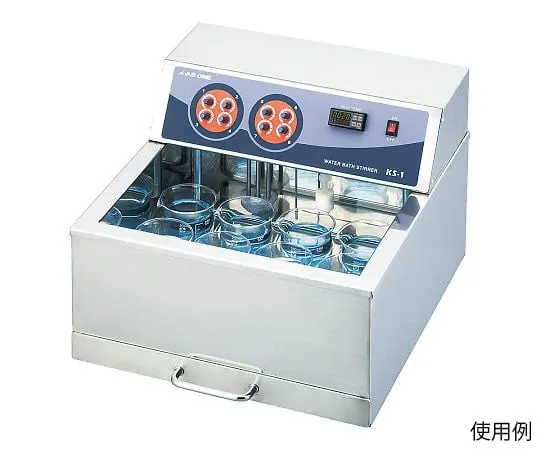

1-3903-21-28 Thermostatic Stirler Bath with Pre-shipment Validation KS-1X
Product Description
Product Model: 1-3903-21-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-3903-21-28
Product Brand: AS ONE Corporation
Features
- Since the constant temperature water bath and the stirrer are integrated, the constant temperature stirring experiment can be performed by one unit.
- You can install the stirrer freely and set the rotation speed individually.
- Since the constant temperature water bath ***s a jet stirring system, the temperature distribution accuracy is excellent, and it is possible to maintain a stable constant temperature condition.
- The temperature controller is easier to see.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 1 point of 37 degrees Celsius
- External dimensions (mm): 400 x 422 x 314
- Tank internal dimensions: 345 x 300 (effective 230) x 150 mm
- Speed: 100 ~ 1500 rpm (Individual Rotation Control system)
- Temperature setting range: room temperature + 5 ~ 80 degrees C
- Temperature control method: PID control
- Heater capacity: 1000 W
- Weight: 13 kg
- Temperature control accuracy: +/- 2 degrees C (It may vary dep***ing on the sample in the tank.)
- Stirring system: Jet stirring system
- Stirring capacity: 300 mL beaker x 8
- Safety device: Float type air cooking prevention device, excessive temperature rise prevention device, overcurrent f***, motor with temperature f***
- Power supply: 100 VAC 50/60 Hz 11 A
- Power cord length: 2 m (3P plug)
- Accessories: Stirrer (30 mm) x 4, Small Stirrer (1 -4609 -25) x 4
- *To add a stirrer, purchase a Magnetic Stirrer (OCTOPUS) S -1 (1 -4609 -25).
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
