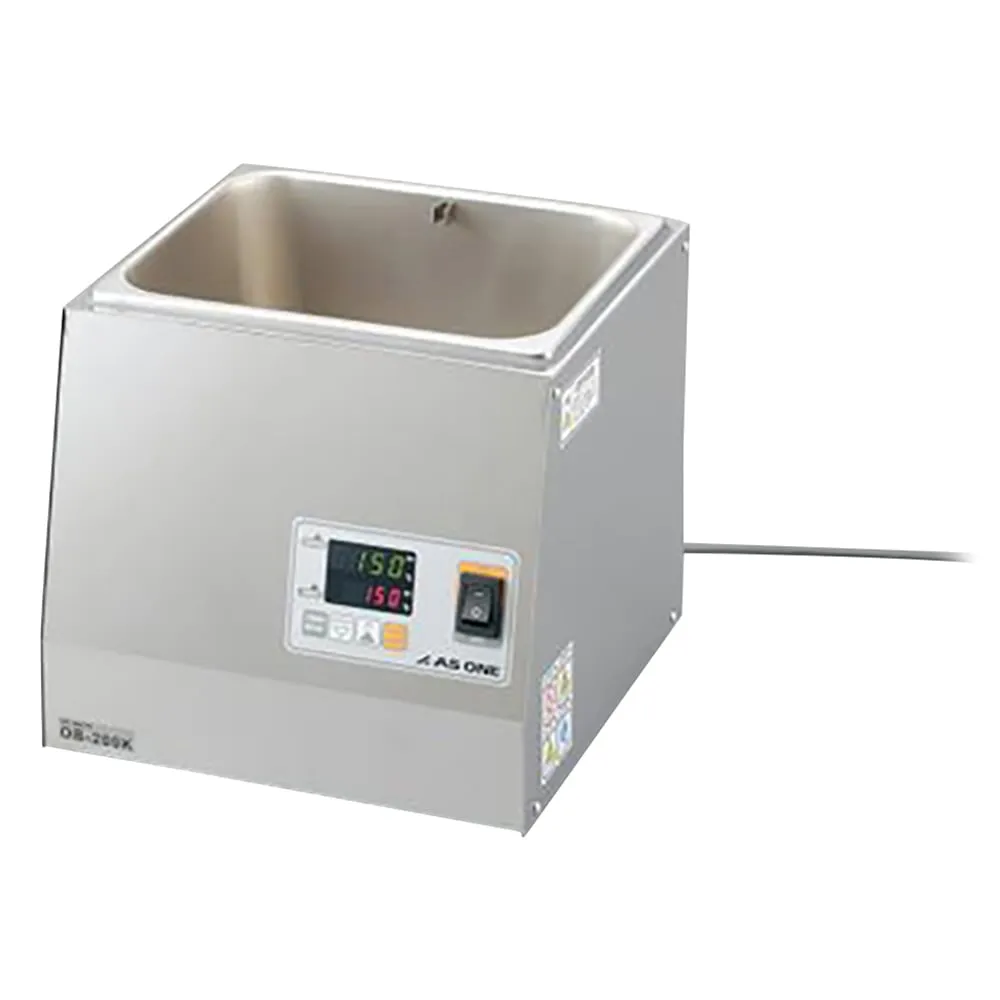

1-3147-41-22 Oil Bath (Rectangular Tank) with Pre-Shipment Inspection Document OB-200K
Product Description
Product Model: 1-3147-41-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-3147-41-22
Product Brand: AS ONE Corporation
Features
- Box type bath series with built-in water tank
- PID control enables high-precision and stable temperature control.
- Operation switch adopts panel waterproof (IP67 compliant) type.
Spec
- External Dimensions (mm): 260 x 266 (280) x 243 * Including Protrusion
- Tank Inner Dimension (mm): 225 x 188 x 150
- Water Tank Capacity: 5 L
- Body Material: SUS430
- Water Tank Material: SUS304
- Temperature Setting Range: Room Temperature +5~200°C
- Temperature display accuracy: ±2°C
- Temperature Sensor: K Thermocouple
- Temperature control system: microcomputer PID control
- Timer setting range: 0~99 hours 59 minutes
- Mountable Thermometer Size: φ7~10 mm
- Safety Device: Over-Temperature Rise Prevention Device, Over-Current Prevention F***, Drip-Proof Switch
- Heater Capacity: 750 W
- Power: 100 VAC 50/60Hz 800 W
- Power Cord: 2.5 m 3P Plug
- Weight: 4.5 kg
- square tank
- *Drainboard is not included.
- This product can provide inspection and inspection services. Please contact us.
- *The inspection and inspection service is a service that inspects the control system (internal temperature measurement, etc.) and the electric locomotive at the time of shipment or at the customer's site, and issues inspection reports.
