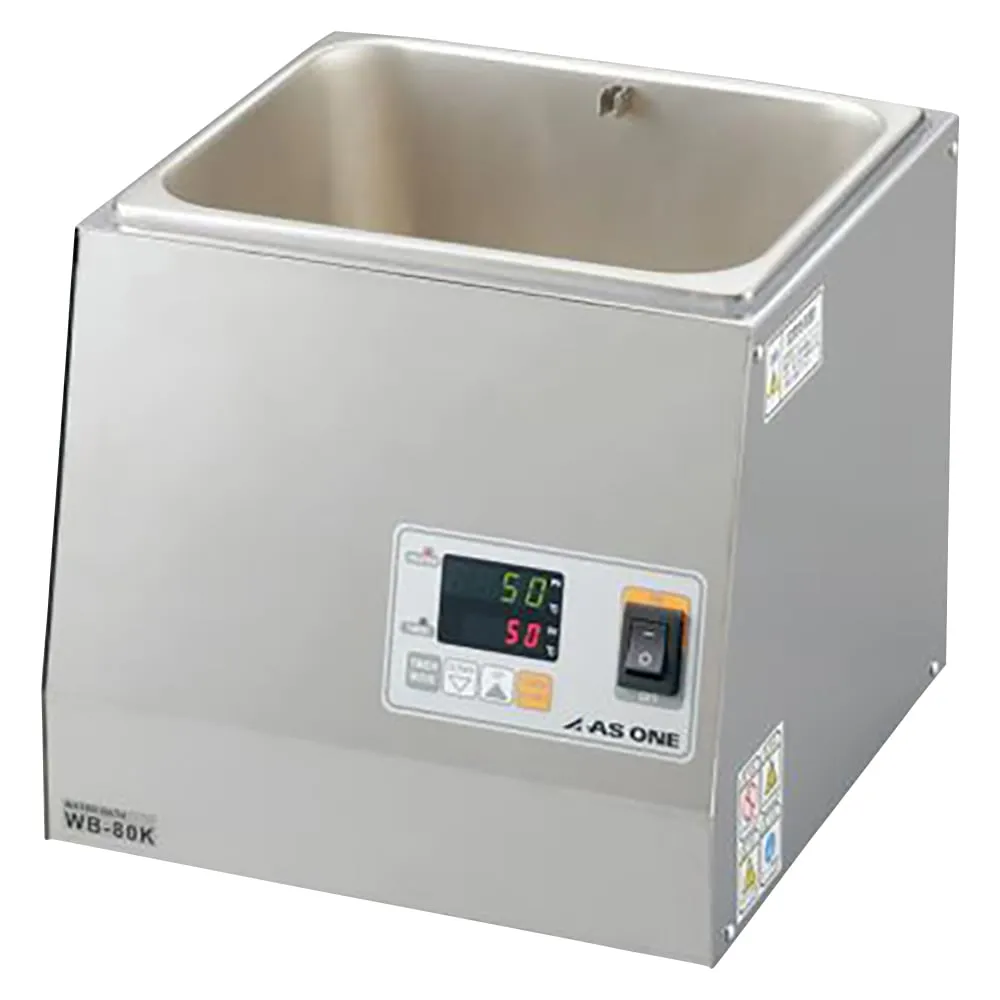

1-3146-41-22 Water Bath (Square Tank) with Pre-Shipment Inspection Document WB-80K
Product Description
Product Model: 1-3146-41-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-3146-41-22
Product Brand: AS ONE Corporation
Features
- PID control enables high-precision and stable temperature control.
- Operation switch adopts panel waterproof (IP67 compliant) type.
Spec
- Outer Dimension (mm): 260 x 266 (Dimension Including Protrusion/280) x 243
- Tank Inner Dimension (mm): 225 x 188 x 150
- Water Tank Capacity: 5 L
- Body Material: Stainless Steel (SUS430)
- Water Tank Material: Stainless Steel (SUS304)
- Temperature Setting Range: Room Temperature +5~80°C
- Temperature display accuracy: ±2°C
- Temperature Sensor: K Thermocouple
- Temperature control system: microcomputer PID control
- Timer setting range: 0~99 hours 59 minutes
- Mountable Thermometer Size: φ7~φ10 mm
- Safety Device: Excess Temperature Rise Prevention Device, Overcurrent Prevention F***
- Heater Capacity: Sheath Heater 750 W
- Power: 100 VAC 50/60Hz 800 W
- Power Cord: 2.5 m (3P Plug)
- Weight: approx. 4 kg
- square tank
- *Drainboard is not included.
- This product is compatible with the validation service (IQ/OQ). Please contact us.
- *The validation service is a service where installation qualification (IQ) and operation qualification (OQ) are performed at the customer's site and an inspection report is submitted.
