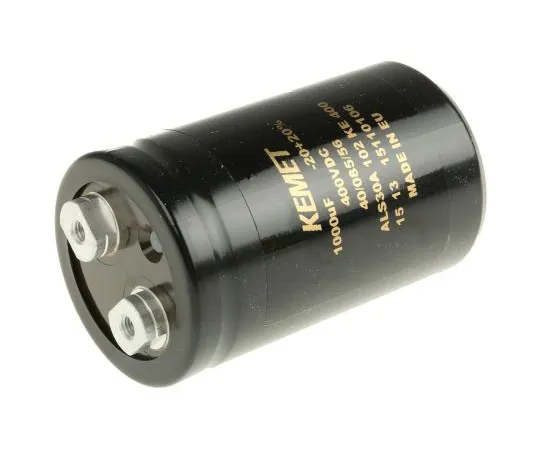

63-4778-24 KEMET 1000μF 400V dc Aluminium Electrolytic Capacitor, Chassis Mount 51 x 82mm +85°C 51mm 82mm ALS30A102KE400
Electronic/Electrical Parts and Controll Equipments

63-4778-24 KEMET 1000μF 400V dc Aluminium Electrolytic Capacitor, Chassis Mount 51 x 82mm +85°C 51mm 82mm ALS30A102KE400

model: 63-4778-24
brand: KEMET

Product Description

Product Model: 63-4778-24Product Brand: KEMET Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4778-24
Product Brand: KEMET

Features

  • AEC-Q200. Screws and washers are not supplied. ALS30/31 Series. KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring. Features and Benefits:. Compact size Long life expectancy up to 20000 h High ripple current Excellent surge voltage capability Aluminium insert terminals with M5 threads. Product Application Information. These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.

Spec

  • Quantity:1piece
  • Capacitance : 1000µF
  • Voltage : 400V dc
  • Mounting Type : Chassis Mount
  • Technology : Electrolytic
  • Dimensions : 51 x 82mm
  • Height : 82mm
  • Length : 82mm
  • Minimum Operating Temperature : -40°C
  • Diameter : 51mm
  • Maximum Operating Temperature : +85°C
  • Series : ALS30
  • Leakage Current : 2.4 mA
  • CODE No.:381-9324
