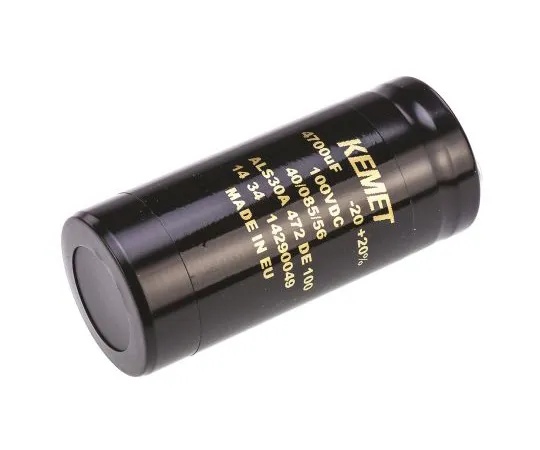

63-4778-14 KEMET 4700μF 100V dc Aluminium Electrolytic Capacitor, Chassis Mount 36 x 82mm +85°C 36mm 82mm ALS30A472DE100
Product Description
Product Model: 63-4778-14Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-4778-14
Product Brand: KEMET
Features
- AEC-Q200. Screws and washers are not supplied. ALS30/31 Series. KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring. Features and Benefits:. Compact size Long life expectancy up to 20000 h High ripple current Excellent surge voltage capability Aluminium insert terminals with M5 threads. Product Application Information. These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.
Spec
- Quantity:1piece
- Capacitance : 4700µF
- Voltage : 100V dc
- Mounting Type : Chassis Mount
- Technology : Electrolytic
- Dimensions : 36 x 82mm
- Height : 82mm
- Length : 82mm
- Minimum Operating Temperature : -40°C
- Diameter : 36mm
- Maximum Operating Temperature : +85°C
- Series : ALS30
- Leakage Current : 2.82 mA
- CODE No.:381-9166
