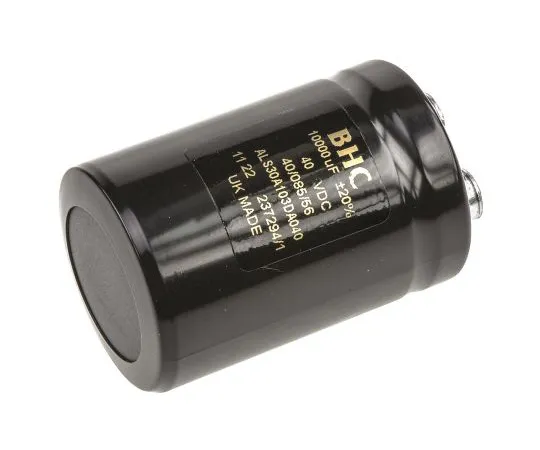

63-4778-05 KEMET 10000μF 40V dc Aluminium Electrolytic Capacitor, Chassis Mount 36 x 52mm +85°C 36mm 52mm ALS30A103DA040
Electronic/Electrical Parts and Controll Equipments

63-4778-05 KEMET 10000μF 40V dc Aluminium Electrolytic Capacitor, Chassis Mount 36 x 52mm +85°C 36mm 52mm ALS30A103DA040

model: 63-4778-05
brand: KEMET

Product Description

Product Model: 63-4778-05Product Brand: KEMET Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4778-05
Product Brand: KEMET

Features

  • AEC-Q200. Screws and washers are not supplied. ALS30/31 Series. KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring. Features and Benefits:. Compact size Long life expectancy up to 20000 h High ripple current Excellent surge voltage capability Aluminium insert terminals with M5 threads. Product Application Information. These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.

Spec

  • Quantity:1piece
  • Capacitance : 10000µF
  • Voltage : 40V dc
  • Mounting Type : Chassis Mount
  • Technology : Electrolytic
  • Dimensions : 36 x 52mm
  • Height : 52mm
  • Length : 52mm
  • Minimum Operating Temperature : -40°C
  • Diameter : 36mm
  • Maximum Operating Temperature : +85°C
  • Series : ALS30
  • Leakage Current : 2.4 mA
  • CODE No.:381-9015
