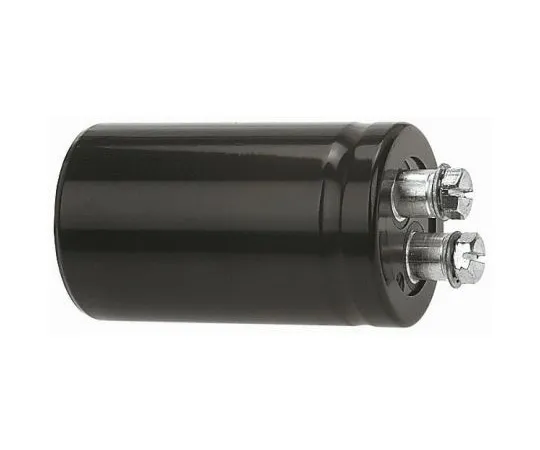

63-4778-02 KEMET 0.15F 16V dc Aluminium Electrolytic Capacitor, Chassis Mount 51 x 105mm +85°C 51mm 105mm ALS30A154KF016
Product Description
Product Model: 63-4778-02Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-4778-02
Product Brand: KEMET
Features
- AEC-Q200. Screws and washers are not supplied. ALS30/31 Series. KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring. Features and Benefits:. Compact size Long life expectancy up to 20000 h High ripple current Excellent surge voltage capability Aluminium insert terminals with M5 threads. Product Application Information. These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.
Spec
- Quantity:1piece
- Capacitance : 0.15F
- Voltage : 16V dc
- Mounting Type : Chassis Mount
- Technology : Electrolytic
- Dimensions : 51 x 105mm
- Height : 105mm
- Length : 105mm
- Minimum Operating Temperature : -40°C
- Diameter : 51mm
- Maximum Operating Temperature : +85°C
- Series : ALS30
- Leakage Current : 6 mA
- CODE No.:381-8955
