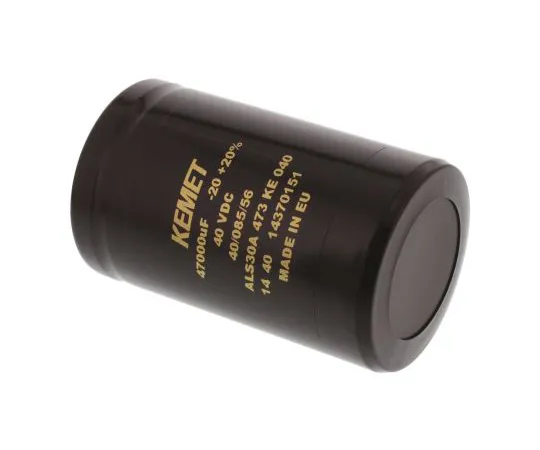

63-4777-96 KEMET 47000μF 40V dc Aluminium Electrolytic Capacitor, Chassis Mount 51 x 82mm +85°C 51mm 82mm ALS30A473KE040
Product Description
Product Model: 63-4777-96Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-4777-96
Product Brand: KEMET
Features
- AEC-Q200. Screws and washers are not supplied. ALS30/31 Series. KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring. Features and Benefits:. Compact size Long life expectancy up to 20000 h High ripple current Excellent surge voltage capability Aluminium insert terminals with M5 threads. Product Application Information. These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.
Spec
- Quantity:1piece
- Capacitance : 47000µF
- Voltage : 40V dc
- Mounting Type : Chassis Mount
- Technology : Electrolytic
- Dimensions : 51 x 82mm
- Height : 82mm
- Length : 82mm
- Minimum Operating Temperature : -40°C
- Diameter : 51mm
- Maximum Operating Temperature : +85°C
- Series : ALS30
- Leakage Current : 6 mA
- CODE No.:381-8589
