Features

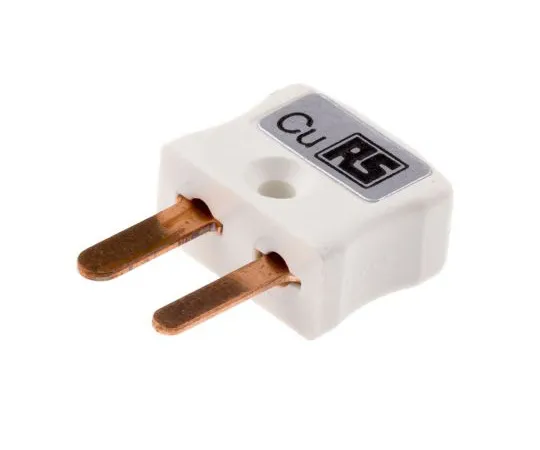

• RS PRO IEC Colour Coded Miniature Quick Wire Thermocouple Plug Connectors. From RS PRO a miniature quick wire in-line thermocouple plug connector colour coded in accordance with IEC. This plug connector features an easy ‘jab-in ‘ wiring connection, simply push in the wire and tighten down the screws!.This thermocouple plug is ideal for connecting your thermocouple probe or wire terminals to extension or compensating cables as well as providing a quick, safe and error-free way of replacing your existing thermocouples. The plug housing is made from a rugged glass-filled thermoplastic which is impact resistant and able to withstand high temperatures of up to 220°C. The pins on this male connector have a flat design and are polarised to ensure an accurate connection. The colour coded housing has the thermocouple type clearly indicated on the front for easy identification. What is a Thermocouple Connector?. Thermocouple connectors are an accurate and convenient way of interconnecting your temperature sensing components. Using these connectors allows a chain to be formed from the measuring tip of your temperature sensor to the host computer or meter. It is important that all the components in the chain are made from the same thermocouple material to prevent any alteration or distortion of the original signal. To achieve this, thermocouple connectors have pins made from the same material as the thermocouple they are being ***d to connect or a compensating material. The connector housing has the thermocouple type clearly printed on it and is also colour coded to allow easy identification. The thermocouple wires are connected to the plug which can then be plugged into a mating miniature thermocouple socket connector. Features and Benefits. Pins made from true thermocouple alloys or compensating material for accurate signal transmission IEC colour coding for quick and easy identification Polarised flat pin contacts for an accurate connection Made from rugged glass-filled thermoplastic Able to withstand a high temperature of 220°C For *** with stranded or solid wires Accepts thermocouple cable up to 4mm in diameter Quick and easy ‘jab-in ‘ wire termination Polarity and thermocouple type clearly marked on housings. Applications. These miniature plugs are ***d in any application where thermocouples are installed, ext***ed or replaced. Their robust construction makes these miniature thermocouple connectors ideal for *** even in the most demanding temperature measurement applications. Accessories. A cable clamp and rubber grommet are available for *** with these miniature thermocouple connectors Stock number ; 236-4104 236-4104 – cable clamp Stock number ; 666-7365 666-7365 – rubber grommet
