64-8613-54 Frame Holder For Earthquake Resistance MS-705LTKP
packagingfilmtapematerials

64-8613-54 Frame Holder For Earthquake Resistance MS-705LTKP

model: 64-8613-54
brand: TRUSCO NAKAYAMA CORPORATION

Product Description

Product Model: 64-8613-54Product Brand: TRUSCO NAKAYAMA […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-8613-54
Product Brand: TRUSCO NAKAYAMA CORPORATION

Features

  • This frame holder ***s a strong adhesive pad and requires no drilling work.
  • This product prevents the fall and movement of factory equipment and equipment that are difficult to fix the level adjuster.

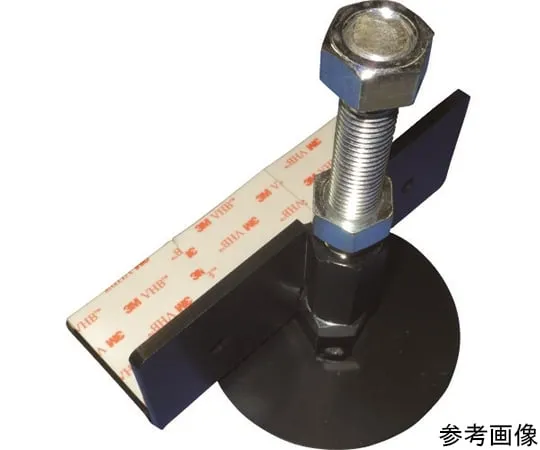

  • The bottom surface of equipment and equipment is bonded and fixed with an L-plate connected to a disk bonded to the floor.
  • Since the disc is bonded and fixed, there is no drilling work to damage the floor surface like an anchor, and there is no need to move the equipment during installation.
  • There is no trace even when it is removed.
  • For places where you want to do seismic reinforcement without using a level adjuster and without stopping equipment in operation.

Spec

  • Body Dimensions (mm) Width x Length x Thickness: 154 x 120 x 125
  • Height adjustment range (mm): 11 ~ 35
  • Object weight: 500 kg or less/1 piece
  • Material/Finish: Acrylic Adhesive, Treated Steel Plate, Plated Screws
  • Set Contents/Accessories: Body x 1: Product Breakdown (Disk with adhesive pad: 1, L Bracket with adhesive pad: 1, M 16 Nut: 2, M8 Bolt: 2, M 16 Hexagon Bolt: 1), Primer B x 2, Instruction Manual, Primer B (5g) x 2
  • Country of origin: Japan
  • Securities Code: 207 -7431
