3-2095-01 ［Discontinued］ASSRE Fume Hood Ceramic Top Panel Type 1200 x 845/750 x 2250 AS-1200C
model:
3-2095-01
category:
gasmonitors
Product Description
Product Model: 3-2095-01 Features The basic specificati […]
Contact Us
Product Details
Product Model: 3-2095-01
Features
- The basic specifications of the epoxy top plate type (on the left page) are unchanged, but the top plate material is ceramic. You can choose according to the chemicals you ***.
- Coordinate with the ASSRE White Laboratory Table Series to create a bright and open laboratory environment.
- A surface speed indicator is included so you can work more safely.
Spec
- Exterior: Steel (powder coating)
- Interior: Chemical resistance and Heat resistance board (chemical resistant paint baking asbestos-free calcium silicate plate (incombustible material) and Phenol resin laminated sheet plate (oxygen Index = 31.6 Flame retardant material))
- Work planes: 33mm thick ceramic (ash color)
- Sash: Transparent strengthened glass (5mm-thick) Balance weights method with sash stopper mechanism
- Supply water plug: Remote control method (polyester resin baking coating)
- Lighting devices: Using fluorescent lamps, with switch
-
- Surface speed (m/s) 400mm opening: 0.5
- Air volume (m3/min): 12
- Connection port (φmm): 200
- Duct diameter (φmm): 200
-
- Feed drainage: 1
- Fluorescent lamps (volume): 20W x 2
- Outlet AC 100V15A double x 2 pieces included
- With surface speed indicator
- Outer dimension (mm): 1200 x 845/750 x 2250
- Inner dimension (mm): 950 x 605 x 1200
- Weight (kg): 290
- Model number: AS-1200C
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
Related product recommendations
You may also be interested in the following products
gasmonitors
64-3460-39 Super Erecta Shelf W 758 x D 460 x H 2197mm (PA) with DB 4 stages MS760PA2200W4
model: 64-3460-39
brand: ERECTA International Corporation
gasmonitors
64-3530-57 Metromax 4 Grid W 910 x D 620 x H 1378mm (MQ) 4 stages MAX42436GMQ54PE4
model: 64-3530-57
brand: ERECTA International Corporation
gasmonitors
65-8683-15 Desipack Silicon Dimensions 90 mm DCP-090
model: 65-8683-15
brand: NIPPON RIKAGAKU KIKAI
gasmonitors

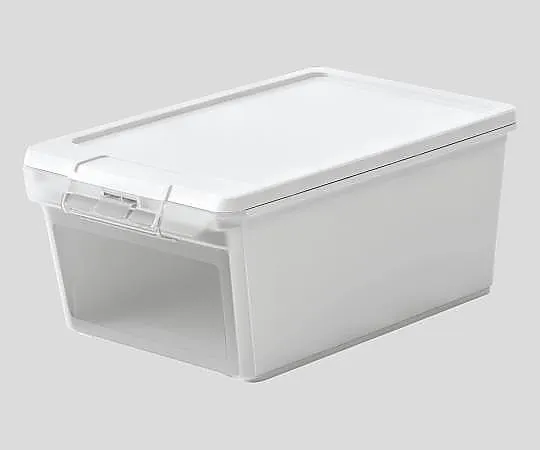

2-9761-01 ［Discontinued］Twin Box White 370 x 220 x 155mm 8447000043202
