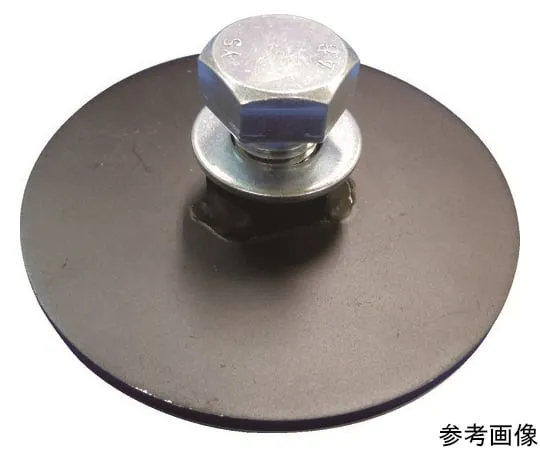

64-8613-35 Seismic Anchor MS-301TKP
Product Description
Product Model: 64-8613-35Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8613-35
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- This product prevents the movement of plant equipment and equipment.
- It is ***d by passing a hexagonal bolt through the hole for attaching the anchor bolt which is already opened in the object, and connecting it with a disk which is strongly bonded to the floor surface.
- Glue and fix the bottom surface without performing any drilling work on the floor such as installing anchor bolts.
- For fixing the floor of various facilities in offices, factories and laboratories.
Spec
- Body Dimensions (mm) Width x Length x Thickness: 100 φ x 32
- Diameter (mm): 100
- Height (mm): 32
- Weight of object: 300 kg or less/piece
- Material/Finish: Acrylic Adhesive, Plated Steel Plate, Plated Screws
- Set Contents/Accessories: Disk with Adhesive Pad x 1, Washer x 2, M 16 x 20 mm Hexagonal Bolt x 1, Primer B x 1, Instruction Manual, Primer B (5 g) x 1
- Country of origin: Japan
- Securities Code: 207 -7472
