64-8613-10 Earthquake-Resistant Article MS-002ATKP
Product Description
Product Model: 64-8613-10Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8613-10
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- Mainly prevents the movement of plant equipment.

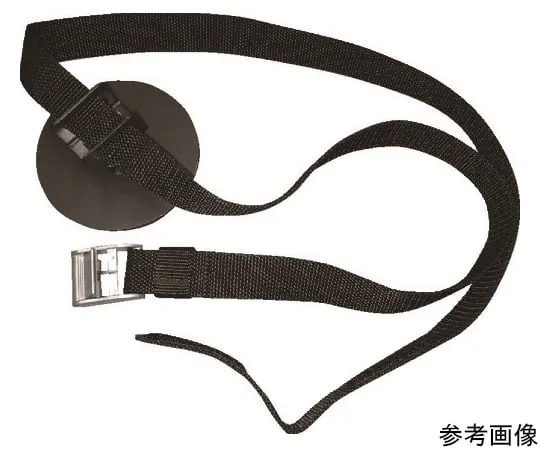

- The disk with adhesive pad and the belt can be wrapped around the frame of the factory equipment and easily overlapped and fixed by the surface fastener part.
- To prevent the movement of equipment by installing multiple pieces in good balance according to the equipment weight.
- Since it is strongly bonded and fixed, drilling work is unnecessary, and by attaching a buckle to the belt, it is possible to move the object temporarily by unfastening the belt.
- As an anti-movement fixture for factory equipment.
Spec
- Body Dimensions (mm) Width x Length x Thickness: 100 φ x 1200
- Belt Length (mm): Approx. 1200
- Adhesive Disk Part Dimension φ (mm): 100 x Approx. 45
- Weight of object: 300 kg or less/piece
- Material/Finish: Treated Steel Plate, Acrylic Adhesive, Polypropylene, Zinc Alloy
- Set Contents/Accessories: Body x 2, Product Breakdown (Disc with Adhesive Pad: 1, PP Belt with Hook and Loop Fastener and Metal Buckle: 1, M 166 Square Bolt: 1, M 16 Washer: 1, Primer B: 2, Instruction Manual, Primer B (5 g) x 2)
- Country of origin: Japan
- Securities Code: 207 -7437
