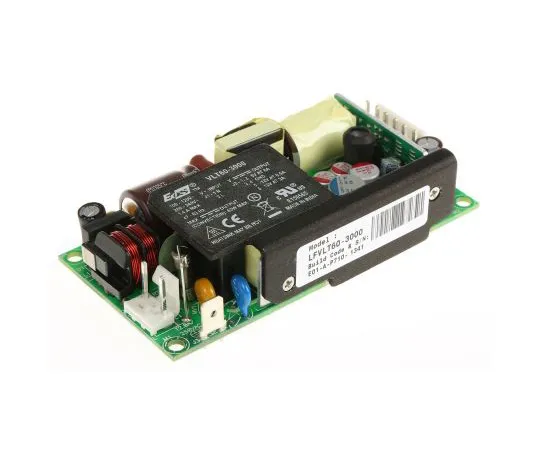

63-4776-56　EOS 60W Triple Output Embedded Switch Mode Power Supply SMPS, 3 A, 8 A, 500 mA, 5.2/12.5V dc Open Frame　LFVLT60-3000
Electronic/Electrical Parts and Controll Equipments

63-4776-56　EOS 60W Triple Output Embedded Switch Mode Power Supply SMPS, 3 A, 8 A, 500 mA, 5.2/12.5V dc Open Frame　LFVLT60-3000

model: 63-4776-56
brand: EOS
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-4776-56Product Brand: EOS Features IE […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-4776-56
Product Brand: EOS

Features

  • IEC950, EN60950, UL1950. VDE; UL Recognised Component. Connectors are not supplied. VLT130 current rating with Fan (180LFM). Power rating with forced airflow, requires ***r supplied 15CFM fan. 40W to 130W Universal Input, Single/Multi Output VLT Series. Overvoltage, power limit and short circuit protection EMI/RFI to CISPR 55011//14-B. FCC 15-B High reliability MTBF>100,000 hours Optional covers available, see stk nos. ; 377-6968 377-6968 or ; 396-1942 396-1942 Power factor correction to EN61000-3-2 (VLT80 and VLT130) -20 to +50°C operating temperature

Spec

  • Quantity：1piece
  • Output Voltage : 5.2/12.5V dc
  • Output Current : 3 A, 8 A, 500 mA
  • Power Rating : 60W
  • Number of Outputs : 3
  • Input Voltage : 180 → 264 V ac, 90 → 132 V ac
  • Mounting Type : Chassis Mount
  • Package Type : Open Frame
  • Length : 101.6mm
  • Width : 51.8mm
  • Depth : 27.18mm
  • Weight : 150g
  • Efficiency : 82%
  • Maximum Temperature : +50°C
  • Minimum Temperature : 0°C
  • CODE No.:377-6930
