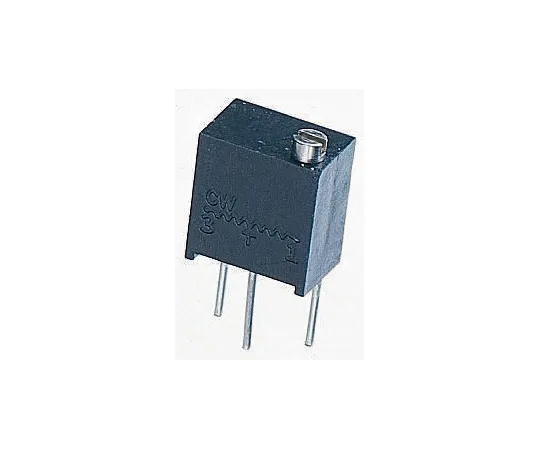

63-4776-38 500kΩ Through Hole Trimmer Potentiometer 0.13W Top Adjust Vishay T63 Series T63YB504KT20
Product Description
Product Model: 63-4776-38Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4776-38
Product Brand: Vishay
Features
- MIL-R-22097, CECC 41 100. 6mm 1/4in. 250mW Top Adjust T63YB. Due to their square shape and small size, the multi-turn trimmers of the T63 series are ideally suited for PCB ***, enabling high density board mounting with reduced space requirement between cards. Multiturn operation A low contact resistance variation
Spec
- Quantity：1piece
- Maximum Resistance : 500kΩ
- Mounting Type : Through Hole
- Number of Turns : 14
- Orientation : Top Adjust
- Power Rating : 0.13W
- Series : T63
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 6.8mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- CODE No.:374-7134
