Spec

• Filtration area, cm

  ²

  : 0.8
• Sample processing volume standard, mL:


  10
• Filter bore diameter, μm: 0.2
• Filter diameter, mm: 13
• Hold-up volume, μL: 15 (after air purge)
• Diameter, mm: 13
• Height, mm: 21
• Device material: Polypropylene
• Material: Hydrophilic nylon
• Outlet connection: Male type luer slip
• Application: Preparation of organic solution before chromatography or other instrumental analysis
• Inlet connection: Female type luer lock
• Housing: Polypropylene
• Filter code: GN
• Filter brand name: Nylon
• Brand name: Millex
• Main application: Analytical Sample Prep
• Connection, Inlet/outlet: Female type luer lock/male type luer slip
• Quantity/box: 100

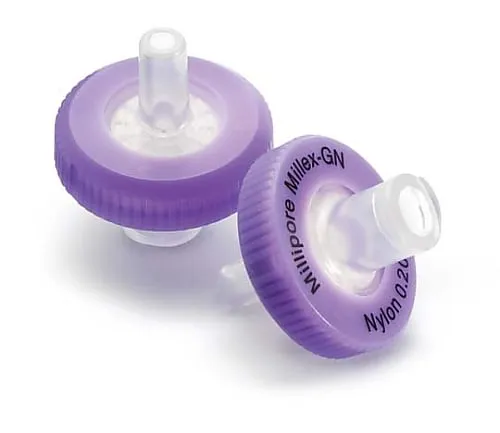

• Overview: Millex -GN filter, 0.20 μm, Nylon 13mm, No sterilization
• Product name: Millex -GN filter unit
• Device color: Purple
• Bubble point, 23 °C:


  300 kPa, Water infiltration and air
• Maximum input pressure, kPa (psi): 1030 (150)
• Highest operating temperature, ℃: 45
• Wettability: Hydrophilic
• Sterility: No sterilization
