63-4775-01 Signal Construct Green, Red Indicator, Tab Termination, 24 → 28 V, 8mm Mounting Hole Size SMLE08214
model:
63-4775-01
brand:
Signal Construct
Product Description
Product Model: 63-4775-01Product Brand: Signal Construc […]
Contact Us
Product Details
Product Model: 63-4775-01
Product Brand: Signal Construct
Features

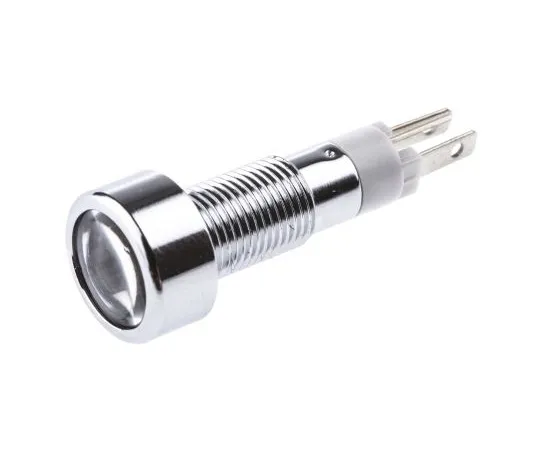

- O-ring, fixing nut and spring washer. Signal Construct 8mm IP67 LED Panel Indicators, SMLD Series. From Signal Construct, this SMLD Series LED sits in a 13mm bezel of bright satin chrome plated brass housing, and features a 10mm glass optical lens that aids in magnifying light output. This LED Panel Indicator is sealed to IP67, which means it is dust and water resistant and so well suited to outdoor conditions. Features and Benefits:. 0.110in. (2.8mm) terminals (0.8mm thick) Bi-colour types have a pin connection for cathode, green is marked G next to terminals Solder Tab Terminals
Spec
- Quantity：1piece
- Voltage Rating : 24 → 28 V
- Light Output Colour : Green, Red
- Mounting Hole Size : 8mm
- Lamp Type : LED
- Lamp Size : 10 mm
- Termination Type : Tab
- Bezel Style : Flush
- Bezel Colour : Chrome
- Current Rating : 10 mA
- Intensity : 200 mcd
- Length : 37.1 mm
- CODE No.:369-3958
