Electronic/Electrical Parts and Controll Equipments

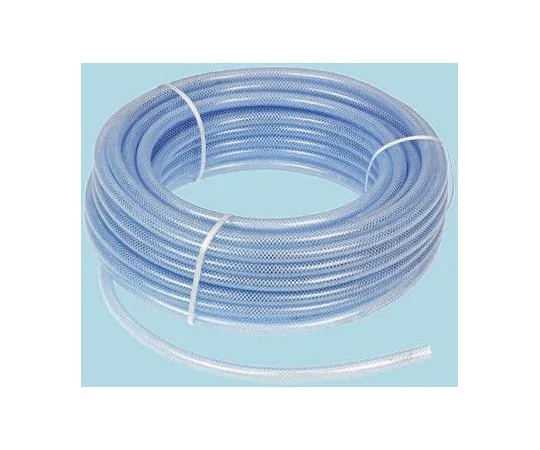

63-4774-75 RS PRO PET, PVC Flexible Tubing, Transparent, 24mm External Diameter, 25m Long, Reinforced, 95mm B*** Radius, 368-0233
Product Description
Product Model: 63-4774-75Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4774-75
Product Brand: RS PRO
Features
- Working Pressure is at +23°C. RS Pro Standard Clear Reinforced PVC Hose. An economical, light duty hose ideal for multi-purpose *** and is especially popular for industrial air line equipment. It can also be ***d for food contact applications. Manufactured from transparent, low toxic PVC and reinforced with high tensile polyester fibres. Features and Benefits. An effective, functional choice for a diverse range of applications especially when budget is a factor. Glass clear clarity for excellent visibility. Excellent resistance to abrasion. Manufactured from cadmium and silicone-free materials using a special low toxic, odourless PVC formulation that can reduce the taint of drinking water. Suitable for food, water, chemicals, gas, fuel and oils. EC compliant for food contact applications. RoHS compliant. Highly resistant to a wide range of acids and alkalis. Service temperature = -15°C to + 60°C. Specially selected high tensile polyester fibres ***d at the optimum braid angle of 54° 44′(54.73°) creates an effective and balanced pressure hose. Manufactured in accordance with BS EN ISO 6224. 3:1 safety factor @ 23°c. Applications. A wide variety of shop floor air line applications. Popular for pharmaceutical / scientific applications for the transfer of chemicals. For the transfer of food substances and liquids
Spec
- Quantity:1piece
- Inner Diameter : 19mm
- Outer Diameter : 24mm
- Material : PET, PVC
- Colour : Transparent
- Reinforced : Yes
- Suitable Applications : Compressed Air, Food, Water
- Length : 25m
- Minimum Operating Temperature : -15°C
- Maximum Operating Temperature : +60°C
- Maximum Working Pressure : 10 bar
- B*** Radius : 95mm
- Operating Temperature Range : -15 → +60 °C
- CODE No.:368-0233
