Features

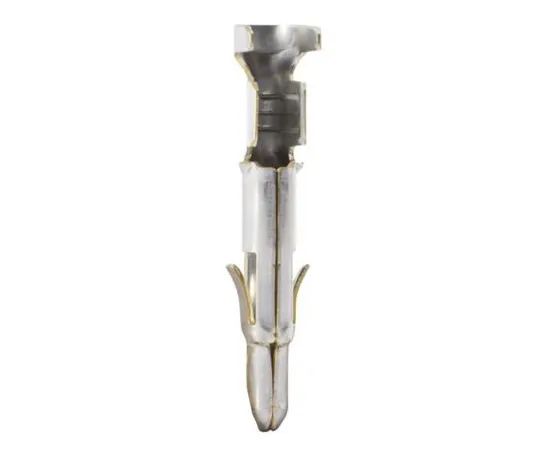

• Mate-N-Lok Contacts for Sealed Connectors. Features:. The male contact comes in two versions: the rigid version is ***d with 2 to 4 way packages split version is recomm***ed for 6 to 15 way packages, to reduce the connector insertion force Blanking pins are provided to block off holes not containing contacts PCB Headers: 12 Voltage Rating: 600 Vac/dc Temperature Range: -55 to +105 °C Mating Cycles: 50 Insulation Material UL94V-2: Natural polyamide Insulation Material UL94V-0: White opaque Nylon 6.6 Insulation Resistance: 1000 MΩ Contact Resistance: 3.5 mΩ A tool designed for the Mate-N-Lok sealed connector is available separately see stock no. ; 366-2055 366-2055. Application:. Consumer Electronics Commercial HVAC Power Supplies Portable Devices Lighting
