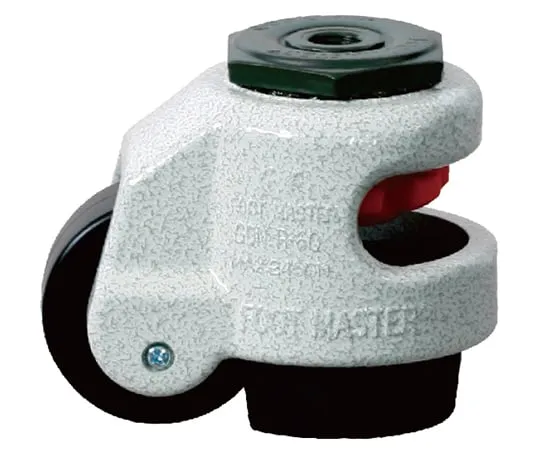

63-1239-78 Footmaster Leveling Caster (Screwed) GDN-40-S-NYN
Product Description
Product Model: 63-1239-78Product Brand: YUEI CASTER Co. […]
Contact Us
Product Details
Product Model: 63-1239-78
Product Brand: YUEI CASTER Co., Ltd.
Features
- These casters are ***d for mechanical devices.
- Can be attached to heavy objects.
- Built-in adjuster enables adjustment of the adjuster.
- Easy to fix and does not require separate adjusters.
Spec
- Wheel diameter (mm): 42
- Car width (mm): 20
- Mounting height (mm): 71
- Screw Size (mm): M8 x 10
- bolt pitch (mm): 1.25
- nut opposite side (mm): 40
- Eccentricity (mm): 30
- Turning radius (mm): 65
- Mounted bolt inner diameter (mm): 4
- Adjuster Adjustment Amount (mm): 10
- Adjuster Base Diameter (mm): 37
- Self-weight (g): 400
- Surface treatment: Powder coating
