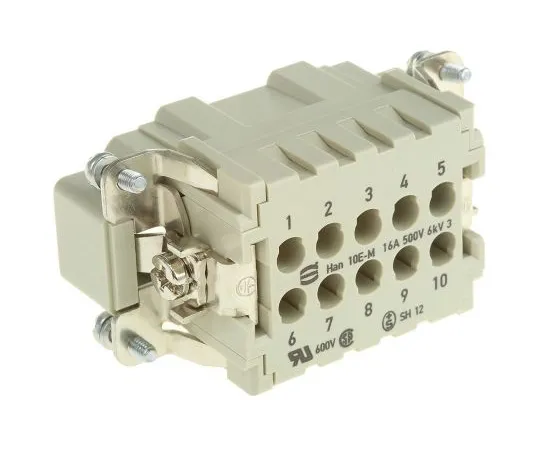

63-4774-26 Han E Series size 16 A Connector Insert, Male, 10 Way, 16A, 500 V 9330102602
Product Description
Product Model: 63-4774-26Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-4774-26
Product Brand: HARTING
Features
- These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection. UL, CSA, SEV. The parallel action crimp tool requires locator stock no. ; 114-7920 114-7920. Han E® 16A Crimp Series. Harting contact inserts have a wide range of ***s. Inserts are selected according to the desired number of poles and voltage and current ratings. Current rating 16A Working voltage 500V 6 to 24 poles Crimp contacts must be ordered separately – option of 1.5mm² and 2.5mm²
Spec
- Quantity：1piece
- Number of Contacts : 10
- Type : Connector Insert
- Current Rating : 16A
- Series : Han E
- Manufacturer Size Code : 16 A
- Voltage Rating : 500 V
- G***er : Male
- Number of Rows : 2
- Body Orientation : Straight
- CODE No.:365-1847
