Features

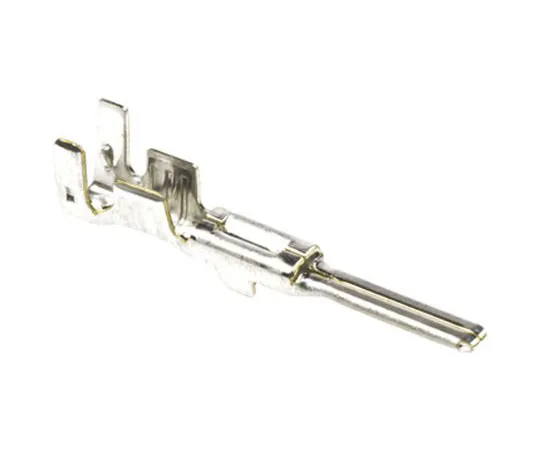

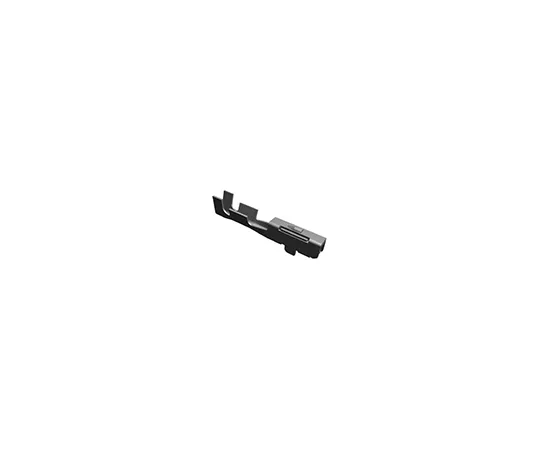

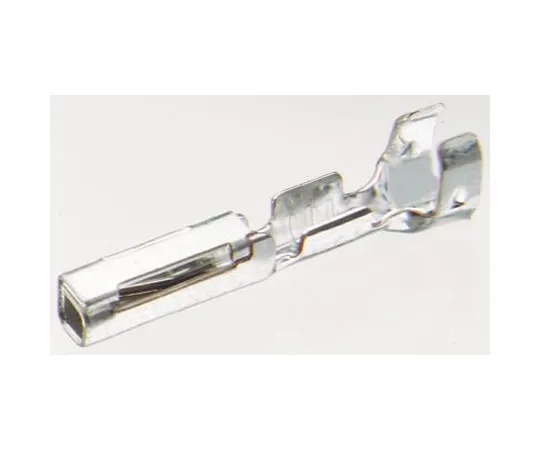

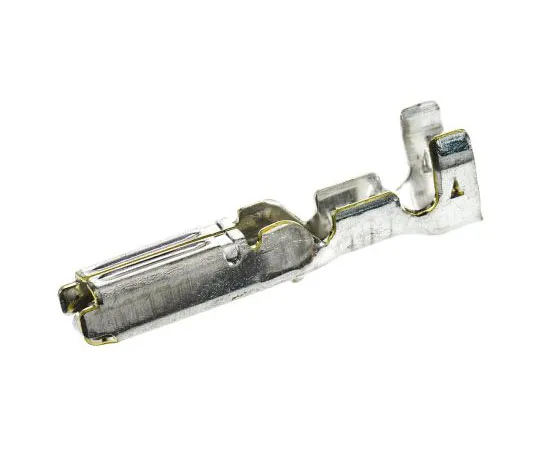

• MULTILOCK 040 ; 070 Contacts ; Tooling. These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly ***d in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating. Features of 040 Series:. Current rating – 8A Withstand voltage: 1kVac per 1 minute Low level resistance: 10 mΩ max (initial) Overall resistance: 20 mΩ max (final) Operating temperature: -30 – 105 °C Crimp terminating contacts Snap-in fixing connector cavities. Features of 070 Series:. Current rating: 15A Withstand voltage: 1kVac per 1 minute Low level resistance: 1 mΩ max (initial) Overall resistance: 10 mΩ max (final) Operating temperature: -30 to +105 °C Crimp terminating contacts Snap-in fixing connector cavities
