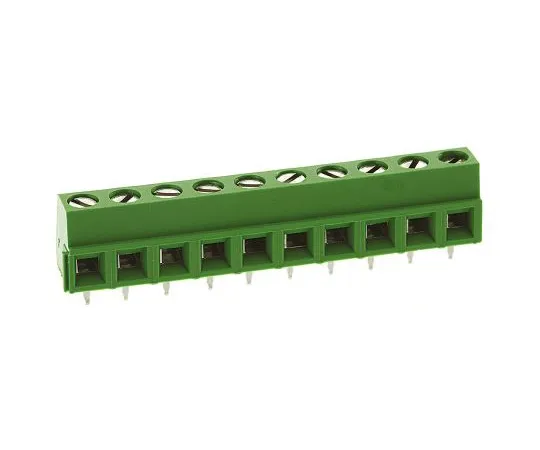

63-4772-78 TE Connectivity Buchanan, 10 Way PCB Terminal Strip 1-282836-0
model:
63-4772-78
brand:
TE Connectivity
Product Description
Product Model: 63-4772-78Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4772-78
Product Brand: TE Connectivity
Features
- UL File no. E60677, CSA File no. LR7189. TE Connectivity 5.0mm TERMI-BLOK Series Low Profile PCB Terminal Blocks with Interlock. TE ‘s ‘TERMI-BLOK ‘ series is a low profile PCB mount terminal block with a 5mm centreline, side wire entry and M3 screw clamp terminals that accept a wire size range of 30 to 16 AWG(.05-1.3mm). These 5.0mm low profile PCB terminal blocks also have an interlocking feature. They ‘re made from a premium green polyamide 6.6 GF. These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal *** as permanent solution however can be ***d in temporary circuitry.. Features and Benefits:.
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 10
- Pitch : 5mm
- Number of Rows : 1
- Mounting Type : Through Hole
- Termination Method : Cage Clamp, Screw
- Type : PCB Terminal Block
- Current Rating : 13.5A
- Body Orientation : Straight
- Colour : Green
- Voltage Rating : 300 V ac
- Series : Buchanan
- Depth : 8.2mm
- CODE No.:361-7752
