Electronic/Electrical Parts and Controll Equipments

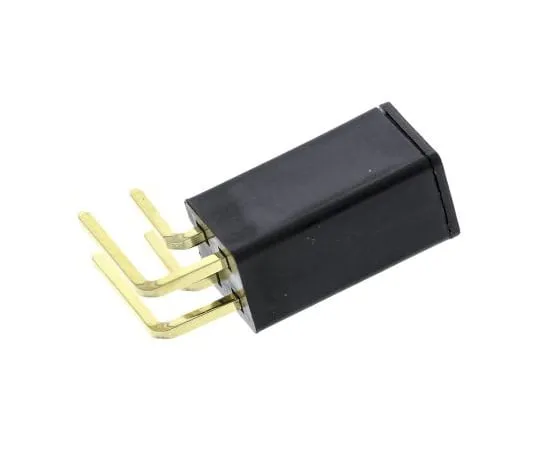

63-4772-60 15 °, 25 mA, 24V, Tilt Switch RBS040200
Product Description
Product Model: 63-4772-60Product Brand: Assemtech Featu […]
Contact Us
Product Details
Product Model: 63-4772-60
Product Brand: Assemtech
Features
- Tilt/Movement Switches. Designed to trigger an I.C., these switches detect tilt or tip-over movement Vertical and 90° Pin versions in polyamide UL94V-0 housing Both types have gold plated ball and gold plated terminals for improved life and stability Suitable for alarm and non-hazardous applications Differential angle 15°
Spec
- Quantity：1piece
- Differential Angle : 15 °
- Mounting Orientation : Horizontal
- Maximum Current : 25 mA
- Maximum AC Voltage : 24V
- Maximum DC Voltage : 24V
- Terminal Type : PCB
- Length : 6mm
- Width : 5mm
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +70°C
- Dimensions : 6 x 5 x 11 mm
- CODE No.:361-5093
