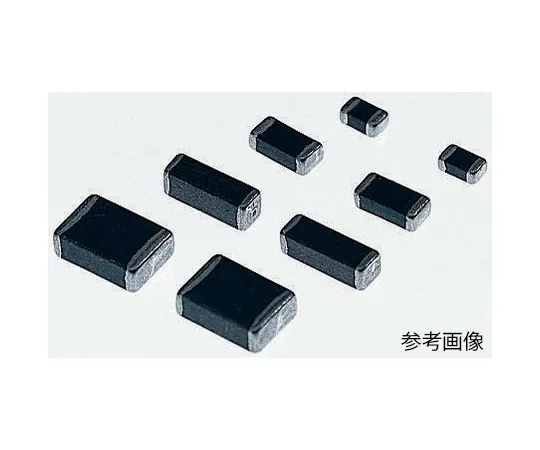

63-4771-67 Wurth WE-MI Series 4.7 μH ±10% Ferrite Multilayer SMD Inductor, 1206 (3216M) Case, SRF: 41MHz Q: 45 50mA dc 900mΩ Rdc 7447916
model:
63-4771-67
brand:
Wurth Elektronik
Product Description
Product Model: 63-4771-67Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-4771-67
Product Brand: Wurth Elektronik
Features
- Wurth 1206 WE-MI Series Magnetically Screened Inductor. Wurth WE MI high-quality multilayer surface mount inductor is magnetically screened and has a low dc resistance. These multilayer inductors have excellent soldering properties, small temperature drift and feature a wide inductance spectrum. The inductors have a maximum packing density on PCBs due to elimination of undesirable coupling effects. Applications. Telecommunications Computers Filter circuits Oscillator circuits Adapter networks
Spec
- Quantity：1bag(10pieces)
- Series : WE-MI
- Inductance : 4.7 μH
- Tolerance : ±10%
- Maximum DC Current : 50mA
- Maximum Self Resonant Frequency : 41MHz
- Package/Case : 1206 (3216M)
- Maximum DC Resistance : 900mΩ
- Core Material : Ferrite
- Dimensions : 3.2 x 1.6 x 1.1mm
- Depth : 1.6mm
- Height : 1.1mm
- Length : 3.2mm
- Maximum Operating Temperature : +125°C
- Inductor Construction : Multilayer
- CODE No.:358-6620
