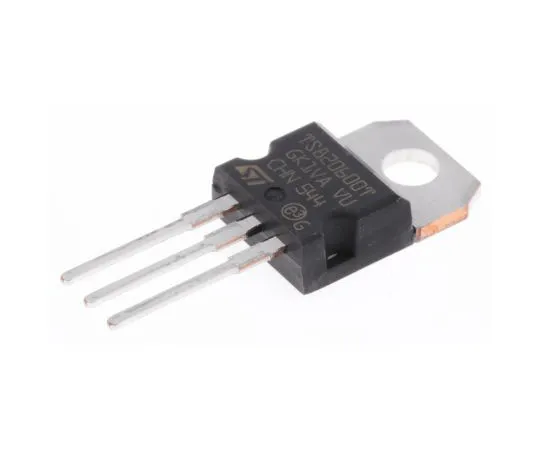

63-4771-29 STMicroelectronics, TS820-600T, Thyristor, 600V 5A, 0.2mA 3-Pin, TO-220AB TS820-600T
model:
63-4771-29
brand:
STMicroelectronics
Product Description
Product Model: 63-4771-29Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-4771-29
Product Brand: STMicroelectronics
Features
- Sensitive Gate Thyristors, STMicroelectronics. A range of Sensitive Gate Thyristors from STMicroelectronics which are especially suitable for applications where the available gate triggering current is limited. Typical ***s are in ground fault circuit interrupters and residual current circuit breakers.
Spec
- Quantity：1piece
- Rated Average On-State Current : 5A
- Thyristor Type : SCR
- Package Type : TO-220AB
- Repetitive Peak Reverse Voltage : 600V
- Surge Current Rating : 73A
- Mounting Type : Through Hole
- Maximum Gate Trigger Current : 0.2mA
- Maximum Gate Trigger Voltage : 0.8V
- Maximum Holding Current : 5mA
- Pin Count : 3
- Length : 10.4mm
- Width : 4.6mm
- Height : 9.15mm
- Dimensions : 10.4 x 4.6 x 9.15mm
- Maximum Operating Temperature : +125 °C
- CODE No.:355-2841
