Electronic/Electrical Parts and Controll Equipments

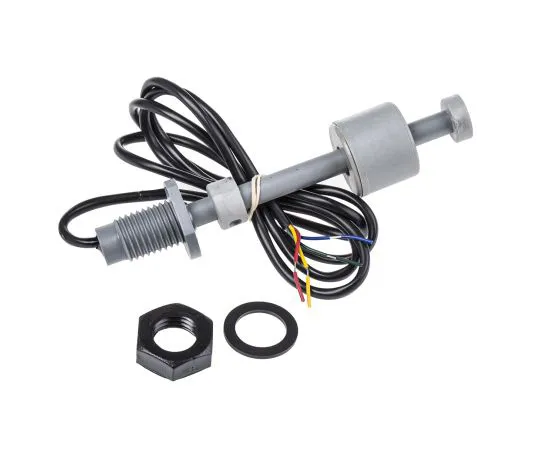

63-4768-80 Dual point vertical float switch,25&75mm RSF66A25B75
Product Description
Product Model: 63-4768-80Product Brand: Cynergy3 Featur […]
Contact Us
Product Details
Product Model: 63-4768-80
Product Brand: Cynergy3
Features
- The Cable entry point must NOT under any circumstances be submerged. On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside. On the vertical type the mounting thread and cable entry must be above the highest level of the liquid. UL recognised. Cynergy3 RSF66 Single Float Switches. The Cynergy3 RSF66 single switch point series are float switches for high and low level switching. The RSF66 float switches are made using Polyphenylene Sulphide (PPS) in grey, which is ideal for a wide range of different liquids. This makes the RSF66 range versatile for different applications. Single float switches are typically ***d in systems that feature PLC process control. What length cable do they come with? The RSF66 series comes with a 1m standard cable length with flying lead. It is a four core PVC cable. What temperature can they withstand? -10°C to +85°C / +14°F to +185°F What is their power capacity? RSF66 float switches have a power capacity of 25VA. Approvals: WRAS, UL and NSF approved. Versions Available (including upper/lower switch levels): ( ; 348-7983 348-7983 ) RSF66A25B75 - Single 30/75mm ( ; 348-7999 348-7999 ) RSF66A25B100 - Single 30/100mm ( ; 348-8009 348-8009 ) RSF66A25B125 - Single 30/125mm ( ; 348-8015 348-8015 ) RSF66A25B150 - Single 30/150mm ( ; 348-8021 348-8021 ) RSF66A25B175 - Single 30/175mm ( ; 446-2597 446-2597 ) RSF66B50B150 - Double 50/150mm Filling Control ( ; 446-2581 446-2581 ) RSF66B50B100 - Double 50/100mm Filling Control ( ; 446-2575 446-2575 ) RSF66A50A150 - Double 50/150mm Emptying Control ( ; 446-2569 446-2569 ) RSF66A50A100 - Double 50/100mm Emptying Control
Spec
- Quantity:1piece
- Device Type : Float
- Mounting Type : Vertical
- Switch Output : Direct Load
- Body Material : Polyphenylene Sulfide
- Cable Length : 1m
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +85°C
- Maximum Current : 600 mA
- Gasket Material : Nitrile
- Series : RSF66
- CODE No.:348-7983
