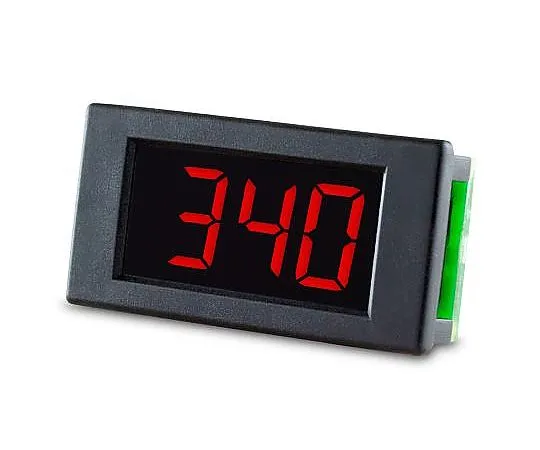

63-4768-78 Lascar Digital Voltmeter DC, LED Display 3.5-Digits ±1 %, 38 x 18 mm DPM 340
Product Description
Product Model: 63-4768-78Product Brand: Lascar Features […]
Contact Us
Product Details
Product Model: 63-4768-78
Product Brand: Lascar
Features
- 8mm, 3.5 Digit, Snap-Fit. Low current LED display Auto zero, auto polarity Input current; 10pA One-piece snap-fit Programmable decimal points Functions as an ammeter when ***d with a 200mV digital current shunt 3 readings per second Dimensions: H20 x W40 x D15.6mm Depth behind panel: 13.6mm Panel cut-out required: 38 x 18mm
Spec
- Quantity：1piece
- Current Type : DC
- Number of Digits : 3.5
- Display Type : LED
- Cutout Height : 18mm
- Cutout Width : 38mm
- Depth : 13.6mm
- Meter Accuracy : ±1 %
- Analogue Effect : Digits Only
- Minimum Temperature : 0°C
- Maximum Temperature : +50°C
- CODE No.:348-1238
