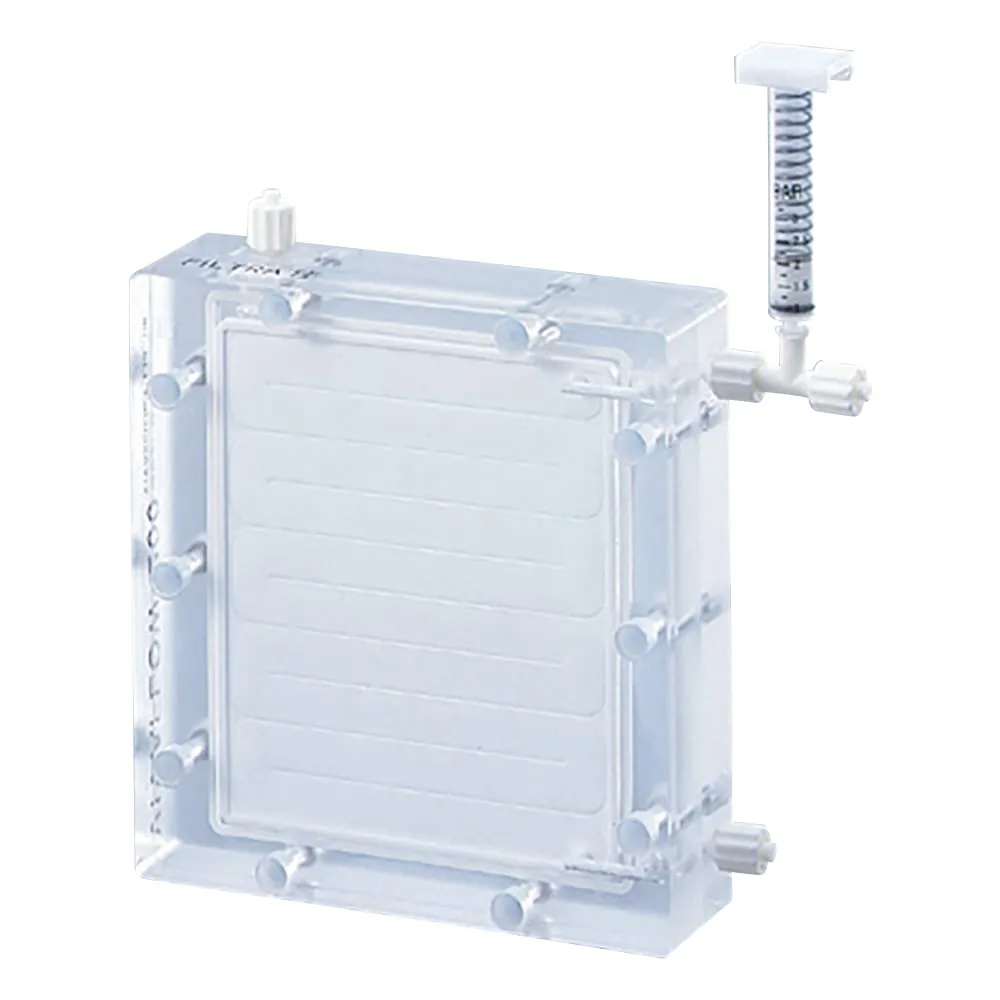

2-5738-01 Cross Flow Filtration (Vivaflow(R) -200/PES) 5,000MWCO VF20P1
Product Description
Product Model: 2-5738-01Product Brand: Sartorius AG Fea […]
Contact Us
Product Details
Product Model: 2-5738-01
Product Brand: Sartorius AG
Features
- It is easy to clean and can be ***d repeatedly, so it is economical.
- A large-volume filtration system using a cross-flow system.
- Concentration from 250 mL to 20 mL or less can be done in a few minutes, and 50 times concentration of 1 L can be done within 30 minutes.
- By using 2 units in parallel, 5 L can be concentrated within 75 minutes.
- For samples of 0.5~5 L or more.
Spec
- Size: 126 x 138 x 38mm
- Passage (width x height): 10 x 0.4mm
- Effective filtering area: 200cm2
- Residual liquid quantity: 5.3mL
- Minimum circulation capacity: ＜20mL
- Liquid volume not collectable: ＜2mL
- Pump flow rate: 200 - 400mL/min
- Adaptive pressure range: 1.5 - 3bar
- Maximum operating temperature: 45℃
- Material: Housing/PMMA (acrylic), Membrane supporter/PP (polypropylene), Seal, O-ring/Silicone, Restrictor assembly/PP (polypropylene), Connection part/PP, nylon, polysulfone, Tube/PVC (medical grade)
- Accessories: Pressure gauge, Size 16 tube with luer fitting, Flow rate restrictor
- Vivaflow 200 flip flow filtration
- Model number: VF20P1
- 5,000MWCO
- Material: PES
- *MWCO represents fraction molecular weight.
