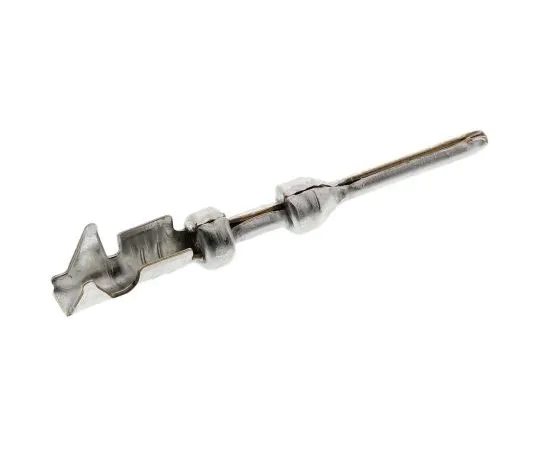

63-4767-38 ITT Cannon size 7 Male Crimp Circular Connector Contact 330-8672-100
Product Description
Product Model: 63-4767-38Product Brand: ITT Cannon Feat […]
Contact Us
Product Details
Product Model: 63-4767-38
Product Brand: ITT Cannon
Features
- Contacts must be ordered separately. Sureseal and Mini Sureseal Contacts. The insertion tool is required to push the crimped contacts into the plugs and receptacles The guide tool is only required for the Sure-Seal range; being ***d to aid the insertion of the female contacts For details of tooling, please see cross reference panel The crimp tool is compatible for both Sure-Seal and Mini Sure-Seal contacts
Spec
- Quantity：1bag(10pieces)
- G***er : Male
- Contact Size : 7
- Termination Method : Crimp
- Contact Type : Signal
- Length : 20mm
- Contact Plating : Tin
- Contact Material : Copper Alloy
- Maximum Contact Resistance : 10mΩ
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +105°C
- Mounting Type : Cable Mount
- CODE No.:341-3033
