Electronic/Electrical Parts and Controll Equipments

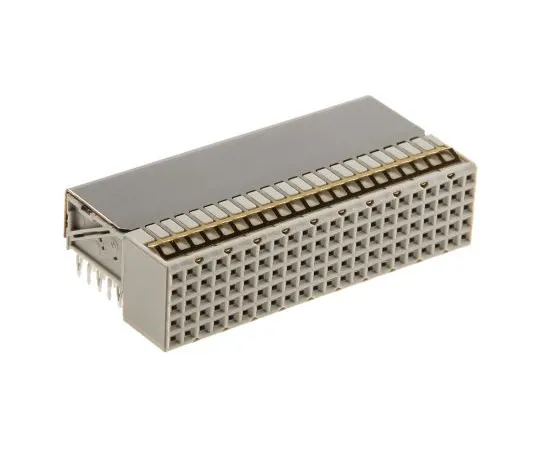

63-4767-25 TE Connectivity Z-PACK HM Series 2mm Pitch Hard Metric Backplane Connector, Female, Right Angle, 22 Column, 5 Row, 110 5352152-1
model:
63-4767-25
brand:
TE Connectivity
Product Description
Product Model: 63-4767-25Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4767-25
Product Brand: TE Connectivity
Features
- Z-PACK™Series Connector for Compact PCI System. Offering high density, high performance and reliability Hot-swap capability, benefiting real-time applications Utilising press fit technology and Euro-style packaging Compact PCI can *** 32bit or 64bits on 3U cards (connectors P1-5/J1-5) and 6U cards (connectors P1-5/J1-5), using standard and special lengths
Spec
- Quantity：1piece
- Backplane Connector Type : Hard Metric
- G***er : Female
- Number of Contacts : 110
- Number of Columns : 22
- Number of Rows : 5
- Body Orientation : Right Angle
- Housing Material : PET
- Pitch : 2mm
- Mounting Type : Through Hole
- Contact Plating : Gold over Nickel
- Current Rating : 1.5A
- Voltage Rating : 500 V ac
- Termination Method : Solder
- Series : Z-PACK HM
- Maximum Operating Temperature : +125°C
- CODE No.:340-1175
