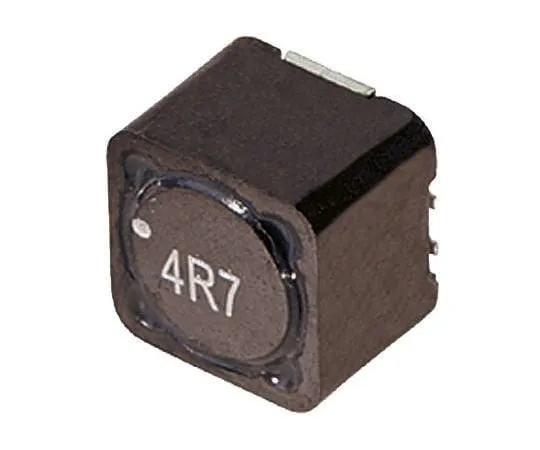

63-4765-92 Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH -20 → +40% 8.5A Idc 74477004
model:
63-4765-92
brand:
Wurth Elektronik
Product Description
Product Model: 63-4765-92Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-4765-92
Product Brand: Wurth Elektronik
Features
- SMD Power Inductors Type WE-PD (Metal Base 1260 - 1210). Magnetically shielded version which results in a low leakage field High storage capacity Low self-losses Highest possible current loading for SMD Inductors Operating temperature -40 to +125°C Recomm***ed solder profile: Reflow Applications: Switching regulators with low operating voltages, Integrated DC/DC-converter, Perfectly suitable for switching regulators with extremely high efficiency (>86%), Graphic cards
Spec
- Quantity：1piece
- Inductance : 4.7 μH
- Maximum DC Current : 8.5A
- Length : 12mm
- Depth : 12mm
- Height : 8mm
- Dimensions : 12 x 12 x 8mm
- Shielded : Yes
- Tolerance : -20 → +40%
- Maximum DC Resistance : 16mΩ
- Series : WE-PD
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 31.2MHz
- Minimum Operating Temperature : -40°C
- CODE No.:333-8566
