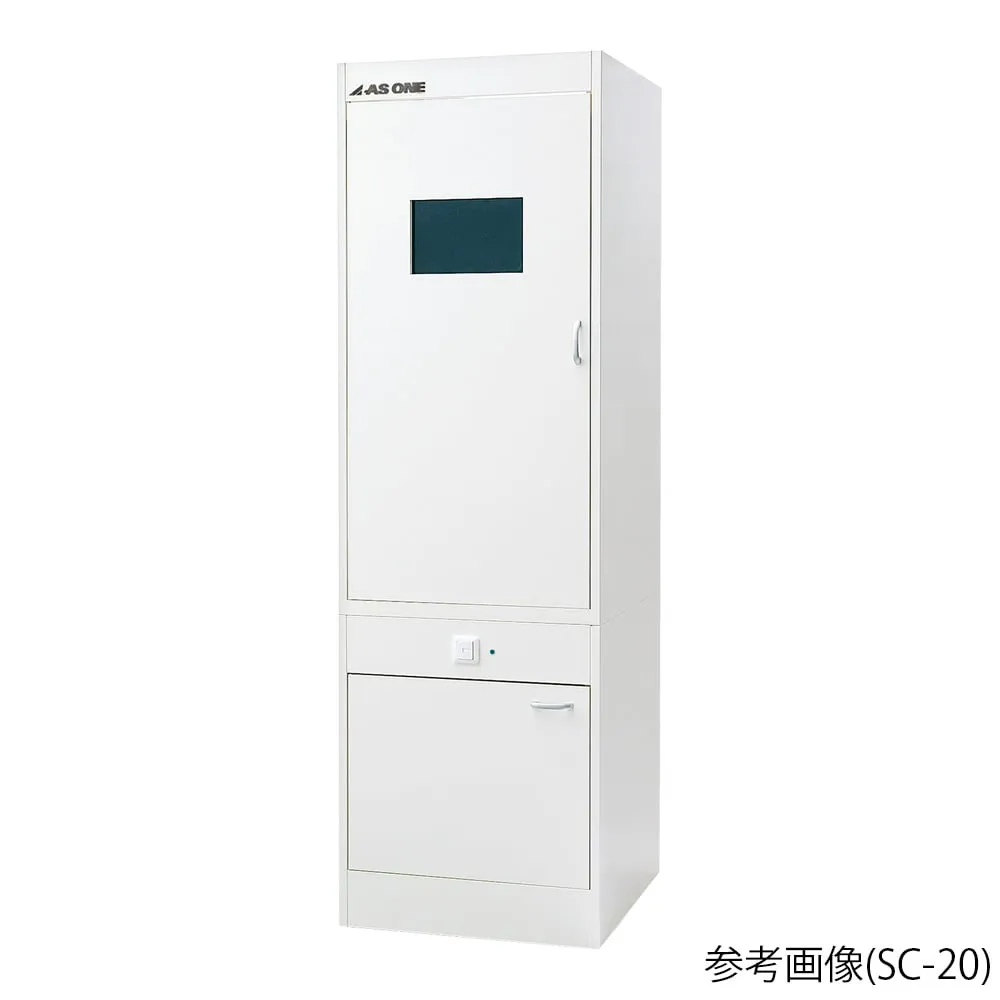

3-3923-11 Wet scrubber unit (indoor installation type) air volume: 12 m3/min SC-12
Product Description
Product Model: 3-3923-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-3923-11
Product Brand: AS ONE Corporation
Features
- Wet type scrubber for indoor installation.
- Neutralize the exhaust gas generated from the hood at the cleaning tower of the unit.
- Suitable for treating water-soluble gases.
Spec
- Model number: SC -12
- air volume (m3/min): 12
- external dimension (mm): 700 x 830 x 2250
- Weight (About kg): 145
- Exterior: Steel (powder coating finish) w/Observation window for shower
- Washing tower: PVC (Plastic vinyl chloride )
- Facilities attached to the scrubber: shower nozzle (Pps molded article) x 9 pieces, filler/PP (Polypropylene), mist catch filter x 1, chemical injection port/PVC (Plastic vinyl chloride ) x 1 location, shower observation window x 1 location, filler exchange port x 1 location
- Circulating tank unit: PVC (Plastic vinyl chloride ), 1 piece (Circulating/Forced Drainage switch valve), 1 piece (Drainage valve), 1 piece (Sampling cock), with overflow piping/ball tap, Water supply pressure reducing valve
- Circulating pumps: Magnet pumps
- Operating Switch: With Return pumps Switch
- power supply connection part: Terminal block with electric box
- Duct Connector
- Gas inlet: 200 A
- Gas outlet: 200 A
- Required duct diameter (Φ mm): 200
- Static pressure (Pa) in the column: 490
- Circulating pumps: 1 Φ 100 V 150/180 W
- Tank capacity (L): 100
- Operation Weight (kg): 245
- Water supply connection (side of the device): 20 A5K flanged
- Drainage connector (side of the device): 30 A5K flange stop
- *Shipping, carrying-in, installation, assembly, etc. are required separately. Please contact us.
- *Exhaust fan is not included.
