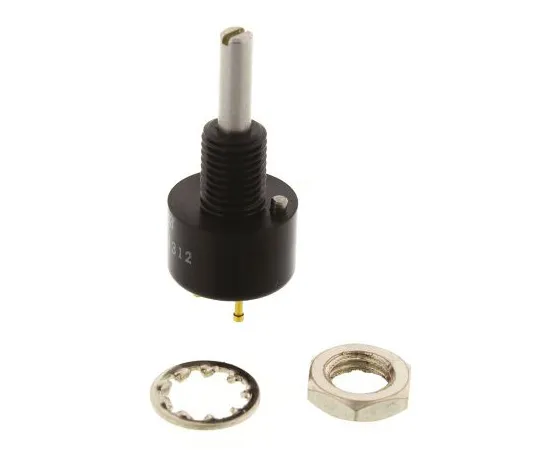

63-4765-79 Vishay 1 Gang Rotary Wirewound Potentiometer with a 3.18 mm Dia. Shaft, 10kΩ, ±5%, 2W, Linear 140B00103B10 140B00103B10
Product Description
Product Model: 63-4765-79Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4765-79
Product Brand: Vishay
Features
- metal lockwasher and nut. 13mm 140 Series. Vishay 140B range of precision wirewound bushing mount potentiometers. Wirewound potentiometer Only 13mm diameter and 12mm behind panel High power rating relative to size 0.5 million shaft revolutions Stainless steel shaft and anodised aluminium housing, gold plated terminals
Spec
- Quantity：1piece
- Potentiometer Type : Rotary
- Maximum Resistance : 10kΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 2W
- Electrical Taper : Linear
- Element Material : Wirewound
- Mounting Type : Panel Mount
- Termination Style : Turret
- Shaft Length : 17.8mm
- Shaft Diameter : 3.18 mm
- Tolerance : ±5%
- Series : 140
- CODE No.:332-5661
