Electronic/Electrical Parts and Controll Equipments

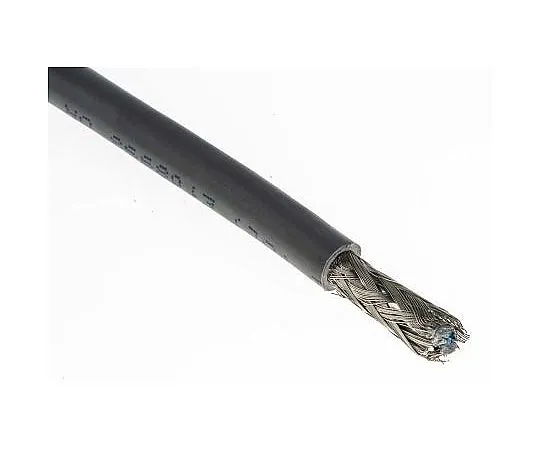

63-4765-72 Belden 2 Core Braid, Foil Industrial Cable, 0.2 mm²(Euroclass Eca) Chrome 152m Reel 9841.01152
Product Description
Product Model: 63-4765-72Product Brand: Belden Features […]
Contact Us
Product Details
Product Model: 63-4765-72
Product Brand: Belden
Features
- NEC CM, UL2919 (9841, 9842, 9843, IEC 332-3C (9841NH, 9842NH), RS-485. RS-485 Control Area Network (CAN) Cable. 24 AWG/0.20 CSA low capacitance computer cables to meet the RS-485 standard. Features and Benefits. Used by the CAN based Fieldbus systems, other open Fieldbus systems, PLC and DCS systems. Overall Beldfoil shield with a Zfold construction. 90% tinned copper braid under a silver sheath. Low smoke zero halogen jacket (LSZH). Non-plenum cable. Applications. RS-485. DMX-512
Spec
- Quantity：1roll(152m)
- Number of Cores : 2
- Cross Sectional Area : 0.2 mm²
- Screened/Unscreened : Screened
- Length : 152m
- Sheath Colour : Chrome
- American Wire Gauge : 24 AWG
- Outer Diameter : 5.9mm
- Current Rating : 2.1 A
- Screen Type : Braid, Foil
- Maximum Operating Temperature : +80°C
- Core Strands : 7/0.20 mm
- Sheath Material : Polyvinyl Chloride PVC
- Voltage Rating : 300 V
- Fire Behaviour : Flame Retardant
- Insulation Material : PE
- CODE No.:331-8893
